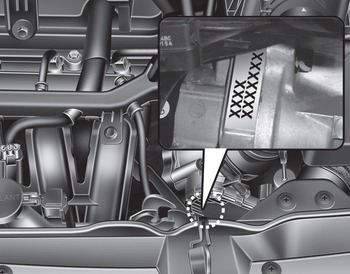

■ Gasoline engine (Kappa)

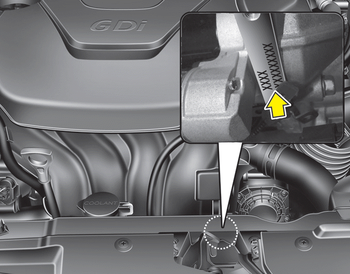

■ Gasoline engine (Gamma)

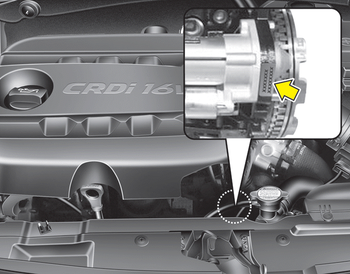

■ Diesel engine
The engine number is stamped on the engine block as shown in the drawing.
