Kia Cee'd: Fuses and Relays / Relay Box (Engine Compartment) Components and components location

Kia Cee'd Service Manual / Body Electrical System / Fuses and Relays / Relay Box (Engine Compartment) Components and components location

Components

Components and components location

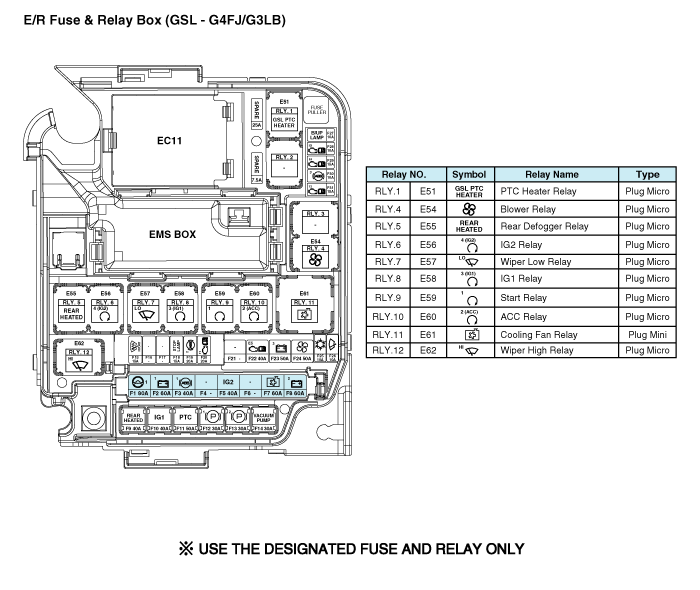

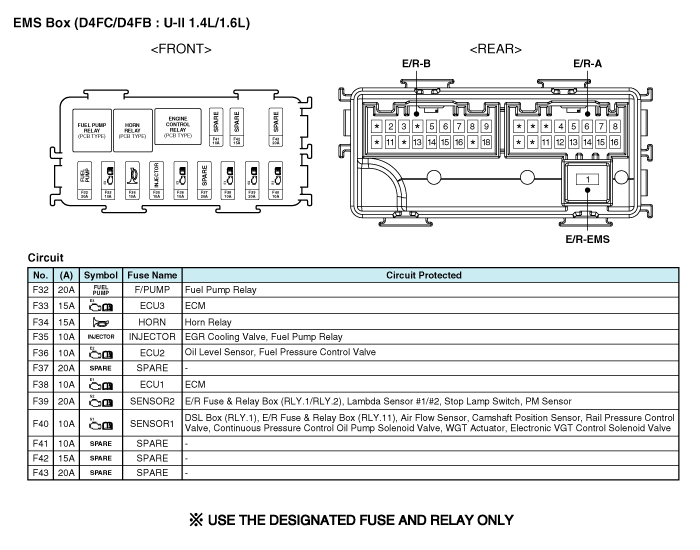

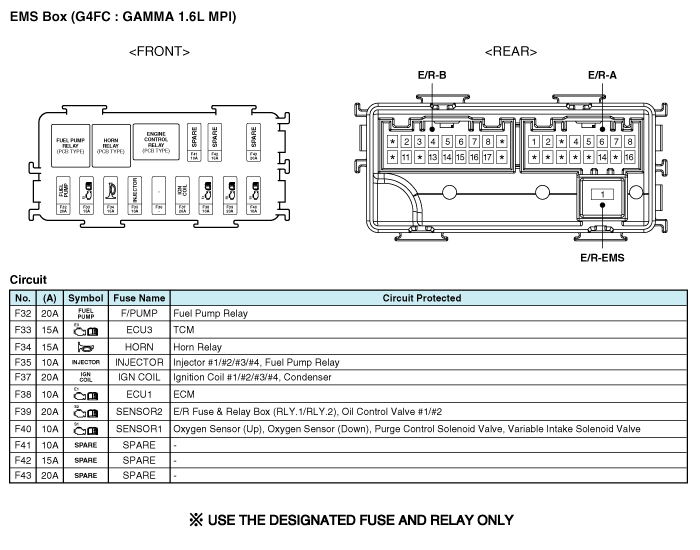

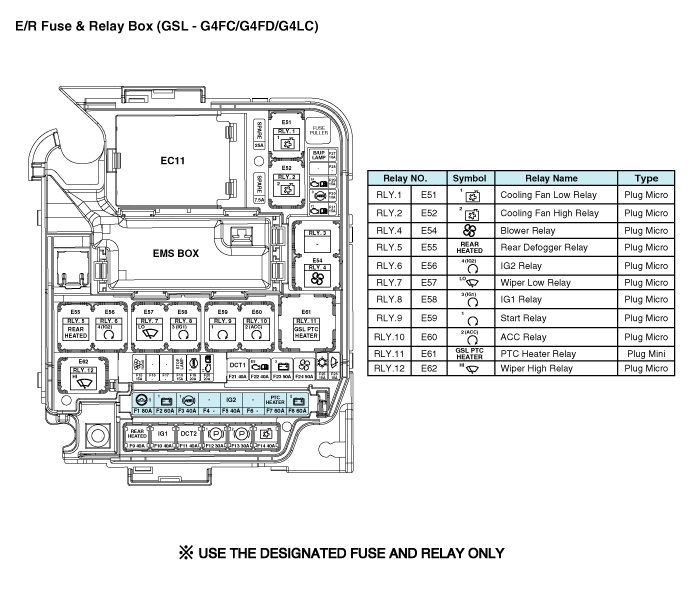

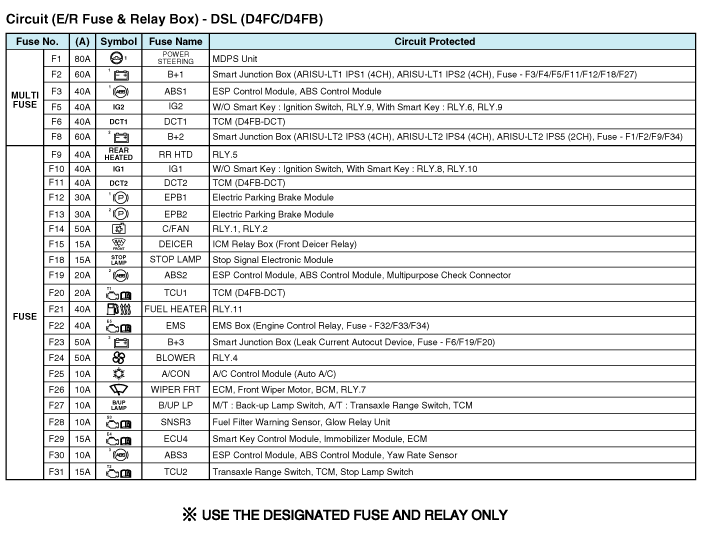

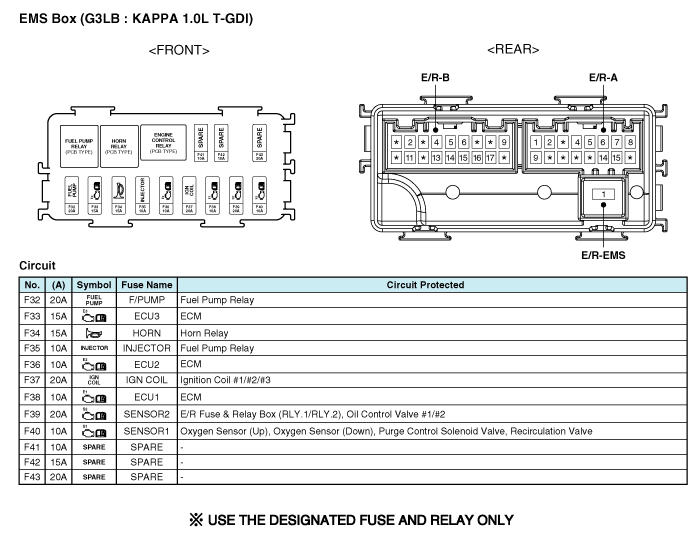

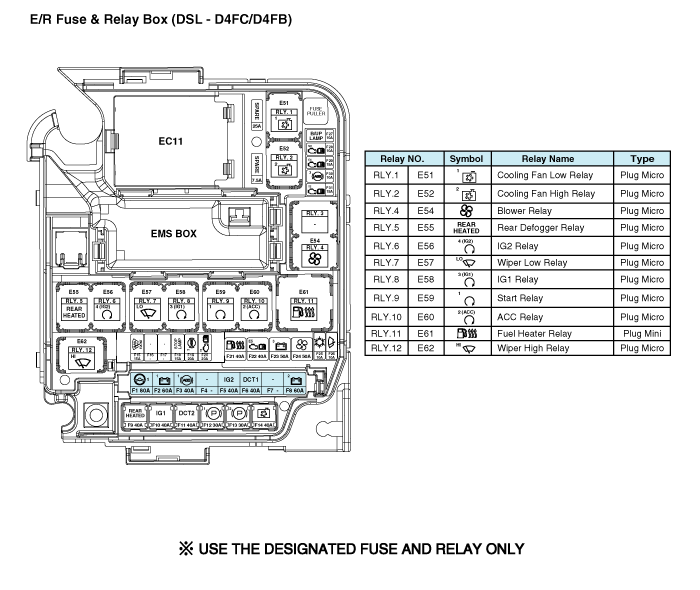

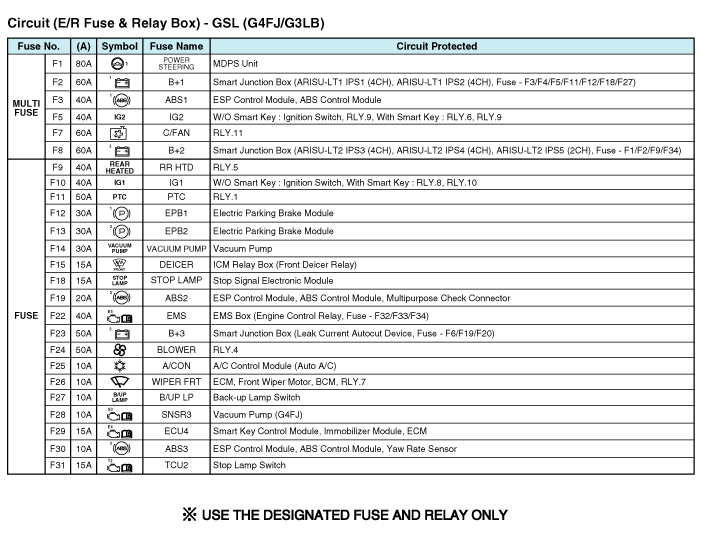

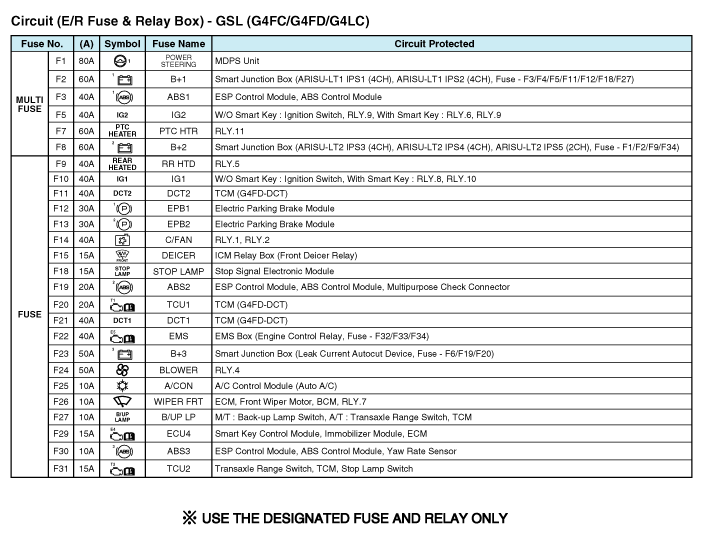

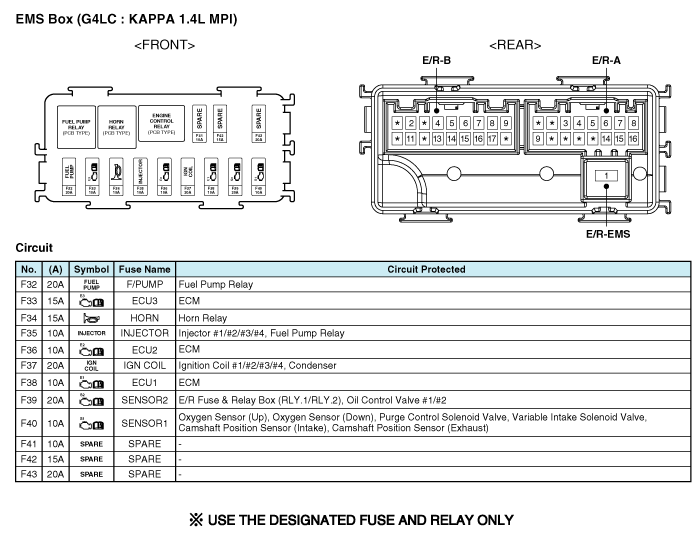

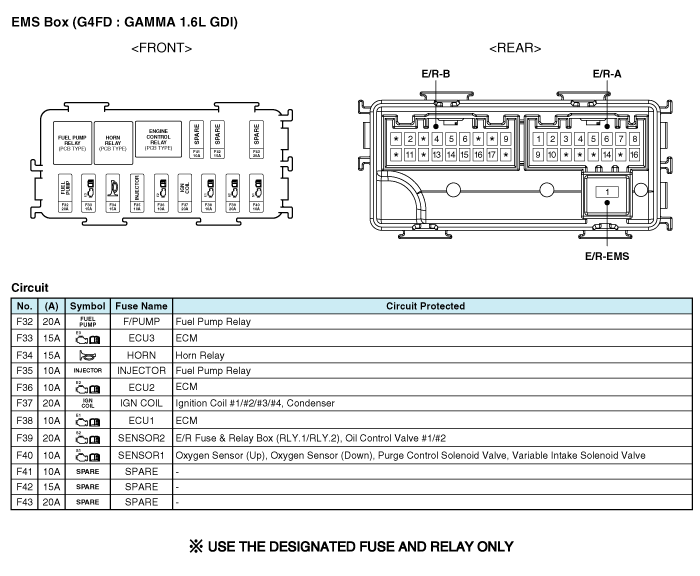

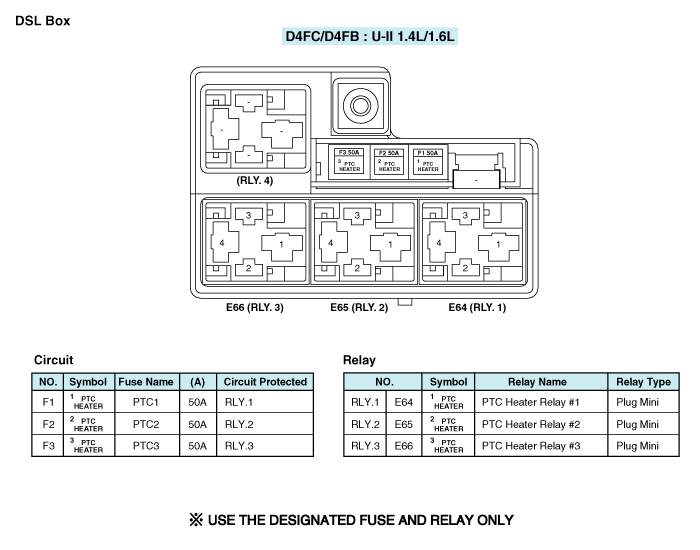

Component Location   1. EMS box assembly 2. Cooling fan(Low) relay 3. Cooling fan(High) relay 4. ESS relay 5. Blower relay 6. Rear defogger rela ...

Relay Box (Engine Compartment) Repair procedures
Inspection Power Relay Test (Type A)    – Do not use pliers. ...
