Kia Cee'd: Gauges / Engine coolant temperature gauge

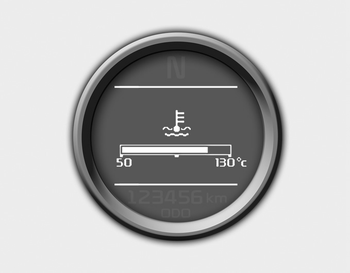

This gauge shows the temperature of the engine coolant when the ignition switch is ON.
Do not continue driving with an overheated engine. If your vehicle overheats, refer to “If the engine overheats” in chapter 6.
CAUTION
If the gauge pointer moves beyond the normal range area toward the “130°C”, it indicates overheating that may damage the engine.
WARNING
Never remove the radiator cap when the engine is hot. The engine coolant is under pressure and could cause severe burns. Wait until the engine is cool before adding coolant to the reservoir.
Fuel gauge
The fuel gauge indicates the approximate
amount of fuel remaining in the fuel
tank.
✽ NOTICE
The fuel tank capacity is given in
chapter 8.
The fuel gauge is supplemented by a
low ...
Manual transaxle shift indicator
This indicator informs you which gear is
desired while driving to save fuel.
For example
: Indicates that shifting up to
the 3rd
gear is desired (currently the shift
lever is in the 2nd or ...
