Kia Cee'd: Parking Brake System / Electronic Parking Brake (EPB) Components and components location

Kia Cee'd Service Manual / Brake System / Parking Brake System / Electronic Parking Brake (EPB) Components and components location

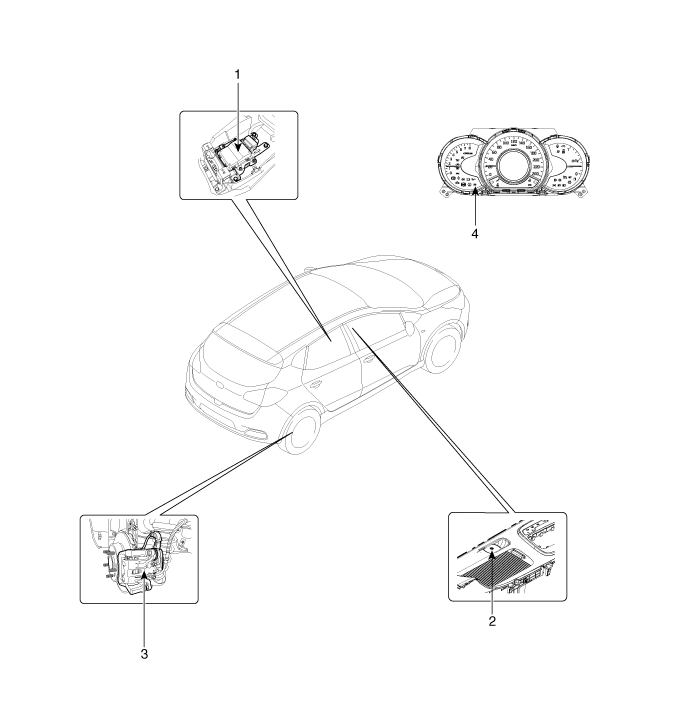

Components


1. EPB Unit
2. EPB Switch
3. Brake Caliper
4. EPB Warning Lamp
