Kia Cee'd: Trip computer / Driving information mode

This mode indicates 3 kinds of driving Information.

All stored driving information (except odometer, distance to empty and instant fuel economy) resets if the battery is disconnected.

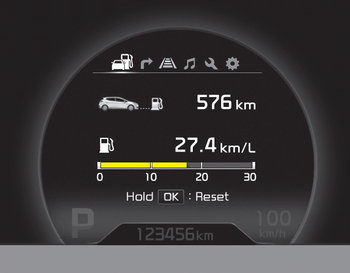

1. Distance to empty (km or mi.)

This mode indicates the estimated distance the vehicle can be driven with the remaining fuel. When the remaining distance is below 50 km (30 miles), “---” will be displayed.

The meter’s working range is from 50 to 999 km (30 to 999 miles).

2. Average fuel economy (L/100 km or MPG)

This mode calculates the average fuel consumption from the total fuel used and the distance since the last average fuel economy reset. The total fuel used is calculated from the fuel consumption input. For an accurate calculation, drive more than 50 m (0.03 miles).

To clear the average fuel economy to zero (--.-), do as follow;

• When the “AVG Fuel Economy” of “User Setting” is in the “Auto Reset”

If the vehicle speed exceeds 1 km/h after refueling more than 6 l, the average fuel consumption will be cleared to zero (---).

• When the “AVG Fuel Economy” of “User Setting” is in the “Manual Reset”

Pressing the button for more than 1 second, when the average fuel consumption is displayed, clears the average fuel consumption to zero (--.-).

3. Instant fuel economy (L/100 km or MPG)

This mode calculates the instant fuel consumption during the last few seconds.

✽ NOTICE

Trip computer
The trip computer is a microcomputercontrolled driver information system that displays information related to driving when the ignition switch is in the ON position. Press the button for l ...

Trip mode (A, B)
This mode indicates 3 kinds of driving Information. All stored driving information (except odometer, distance to empty and instant fuel economy) resets if the battery is disconnected. 1. Tri ...
