Kia Cee'd: Timing System / Drive Belt Tensioner Components and components location

Kia Cee'd Service Manual / Engine Mechanical System / Timing System / Drive Belt Tensioner Components and components location

Components

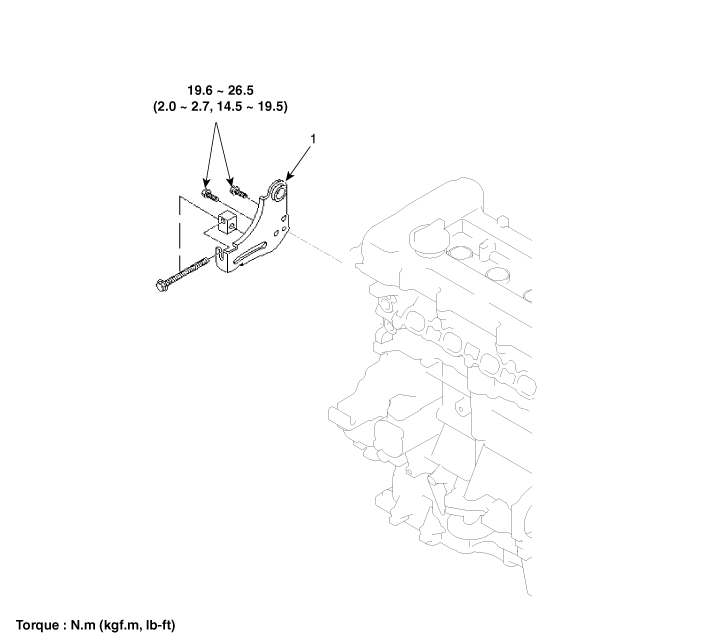

1. Drive belt tensioner

Idler Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the idler (A). ...

Drive Belt Tensioner Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the alternator. ...
