Kia Cee'd: Driving your vehicle / Speed Limit Information Function (SLIF)

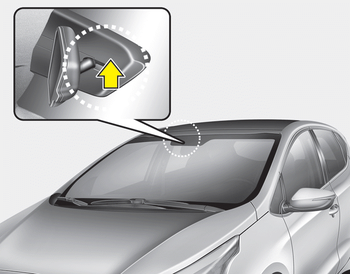

The system displays the information of speed limit and no passing restriction to the driver in both the instrument cluster and navigation screen. SLIF detects traffic signs with camera system attached behind the top of the windscreen.
The SLIF also utilizes the navigation information to display the speed limit information.
WARNING
- Speed Limit Information Function is only an aid and is not always able to correctly display speed limits and overtaking restrictions.
- The driver always keeps the responsibility to not exceed the maximum allowed speed
- Do not place any accessories, stickers or tint the windshield near the rearview mirror.
- The system detects traffic signs and displays speed limit information by a camera therefore, if traffic signs are hard to detect, the system may not work properly. Please refer to "Driver's Attention".
- Do not remove any LDWS parts or apply impact.
- Do not place objects on the dashboard that reflects light such as mirrors, white paper, etc. The system may malfunction if the sunlight is reflected.
- The system is not available in all countries.
The LDWS may not warn you even
if the vehicle leaves the lane, or
may warn you even if the vehicle
does not leave the lane when
The lane is not visible due to snow, rain,
stain, a puddle or many other things.
The brightness of the outside changes
suddenly.
Not turning on the headlight even at
night or in the tu ...
SLIF activation / deactivation
SLIF Setting method :
Cluster User Settings → Driving Assist
→ SLIF (Speed Limit Information
Function)
The information of speed limit and no
passing restriction will appear on th ...
