Kia Cee'd: Cylinder Block / Cylinder Block Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cylinder Block / Cylinder Block Components and components location

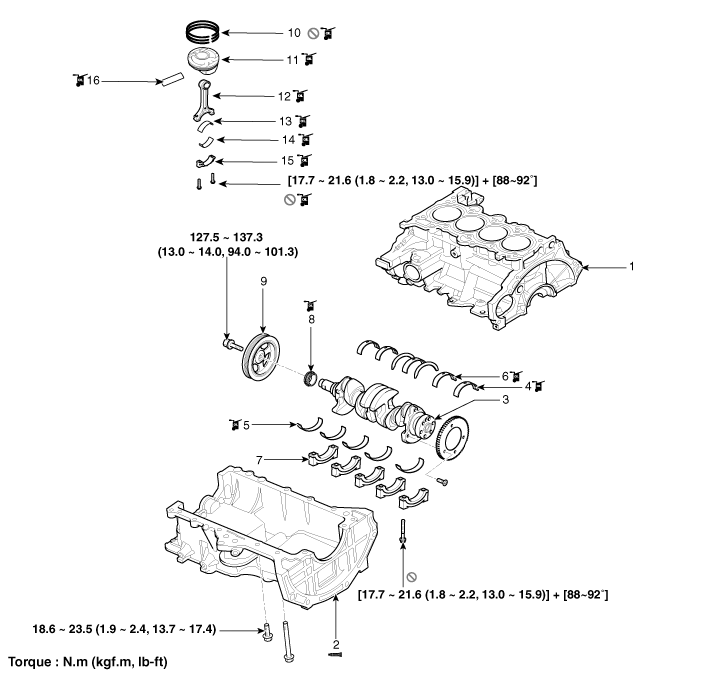

Components


1.  Cylinder block
2.  Ladder frame
3.  Crank shaft
4.  Crank shaft upper bearing
5.  Crank shaft lower bearing
6.  Thrust bearing
7.  Main bearing cap
8.  Crank shaft sproket
9.  Crank shaft pulley
10. Piston ring
11. Piston
12. Connecting rod
13. Connecting rod upper bearing
14. Connecting rod lower bearing
15. Connecting rod bearing cap

Rear Oil Seal Repair procedures
Removal 1. Remove the transaxle assembly. (Refer to Manual Transaxle System - "Manual Transaxle") 2. MT : Remove the ...

Cylinder Block Repair procedures
Removal Engine removal is required for this procedure. (Refer to Engine and transaxle assembly removal in this group) 1. MT : Remove the flywheel. ( ...
