Kia Cee'd: Blind Spot Detection system / Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Blind Spot Detection system / Components and components location

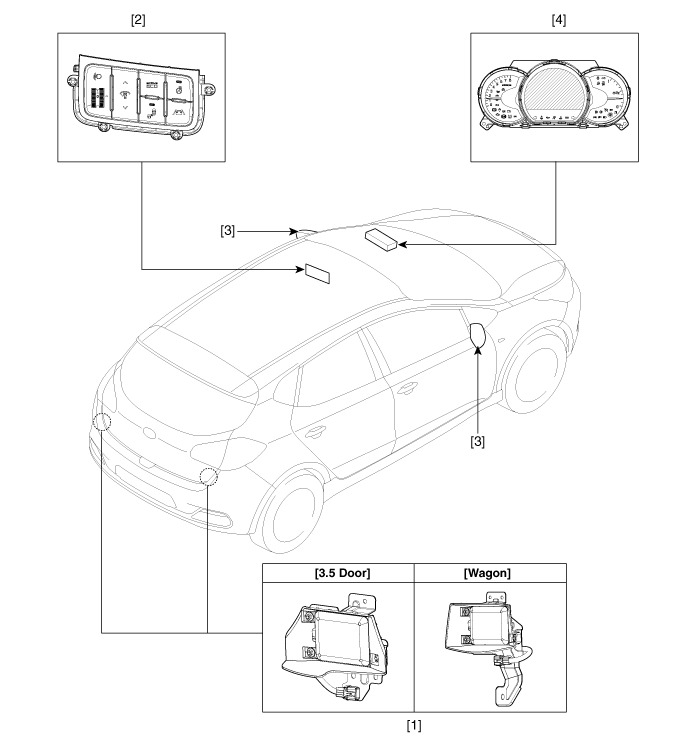

Components

1. Blind Spot Detection (BSD) Unit
2. BSD switch

3. BSD warning lamp
4. Cluster

Specifications

Specifications Items Specification Rated voltage DC 12V Operating voltage 9V ~ 16V ...

Description and operation

Description BSD is a system that uses two magnetic wave radar sensors attached on the rear panel to measure the distance from the following vehicles and provides the sensing ...
