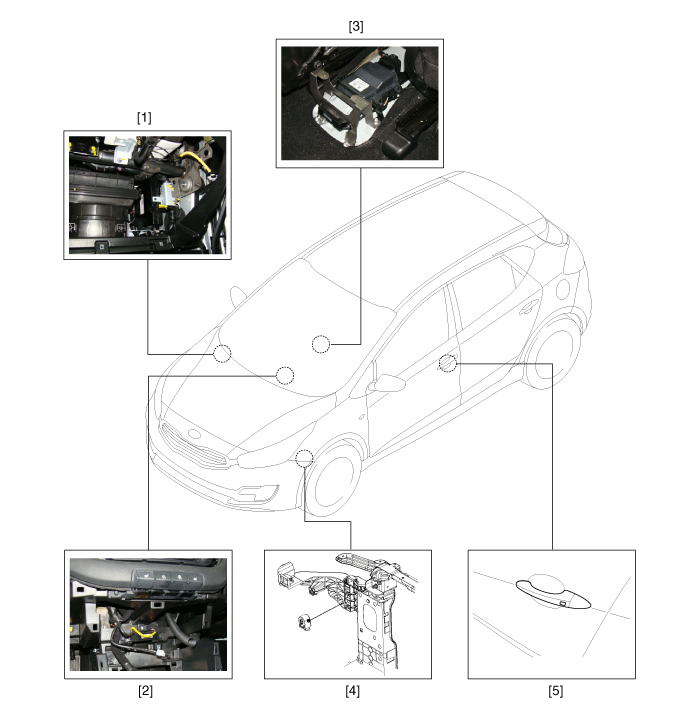

Component Location (1)


1. Smart key unit
2. Interior antenna 1
3. Interior antenna 2
4. Buzzer
5. Door outside handle

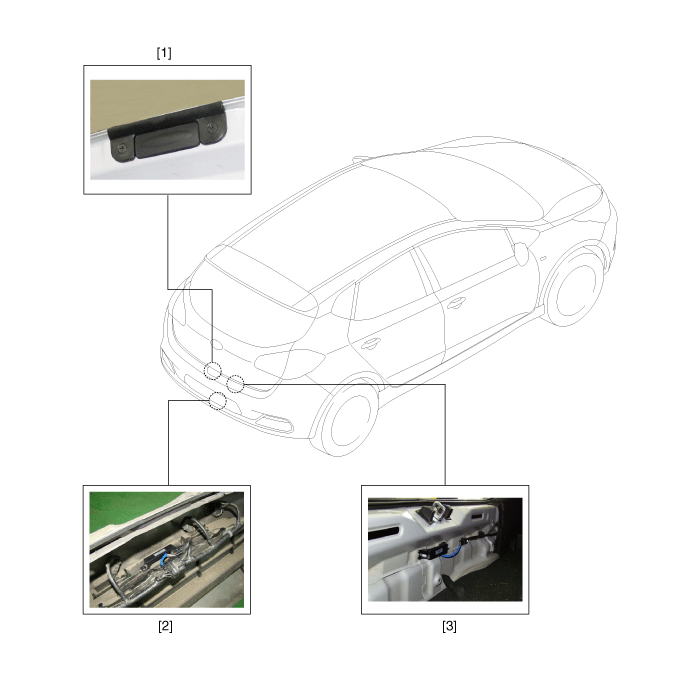

Component Location (2)


1. Tailgate open switch
2. Bumper antenna
3. Tailgate antenna

Specifications
Specification Smart Key Unit   Items Specification Rated voltage DC 12V Operating voltage DC ...

Description and operation
Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote co ...
