Kia Cee'd: Interior Trim / Center Pillar Trim Components and components location
Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Interior Trim / Center Pillar Trim Components and components location
| Component Location |

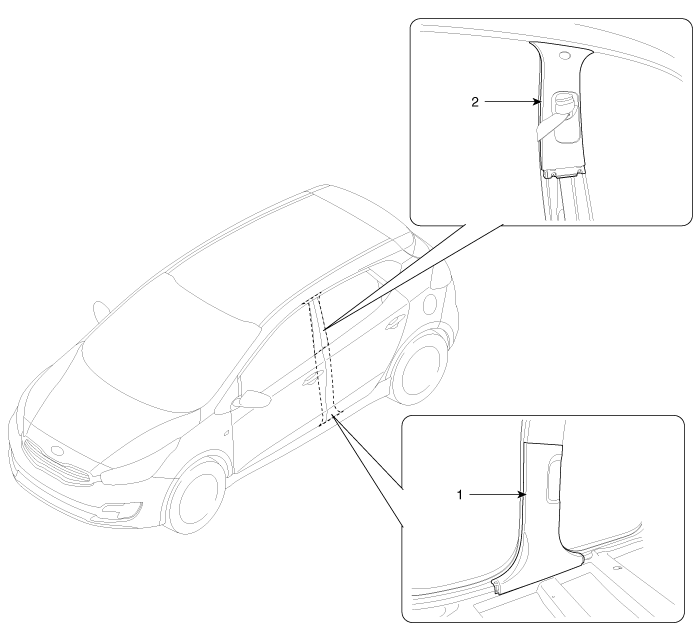

| [5Door] |
| 1. Center pillar lower trim
|
2. Center pillar upper trim
|

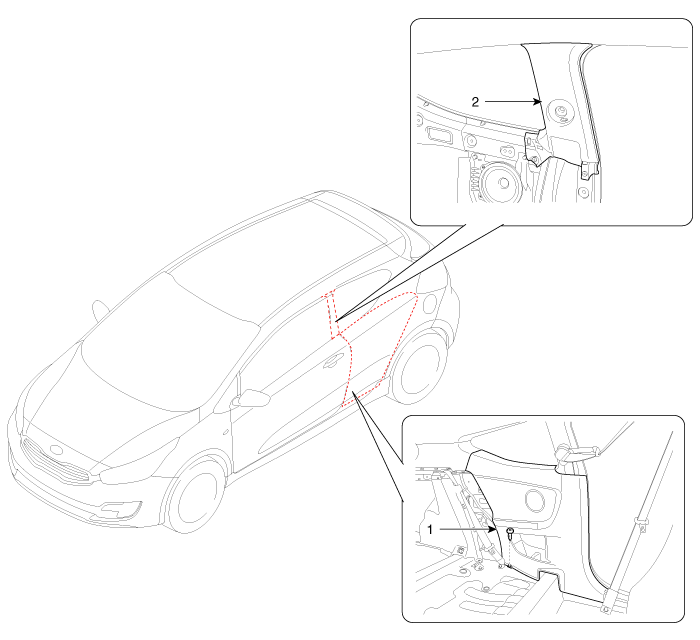

| [3Door] |
| 1. Rear inner outer trim |
2. Center pillar upper trim
|
Front Pillar Trim Repair procedures
Replacement
•
Put on gloves to protect your hands.
...
Center Pillar Trim Repair procedures
Replacement
(5Door)
[Center pillar lower trim]
•
Put on gloves to protect you ...
