Kia Cee'd: Audio / Audio Unit Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Audio / Audio Unit Components and components location

Components

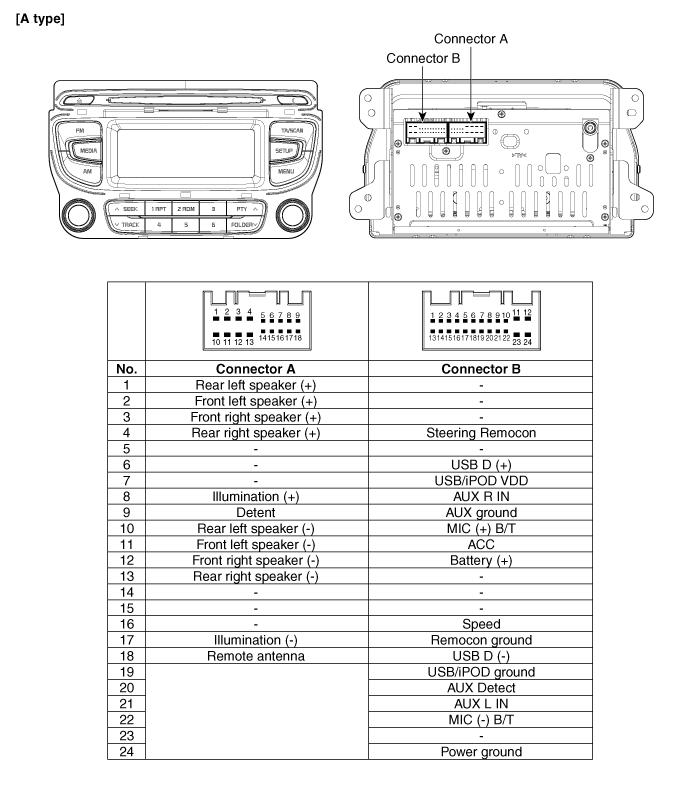

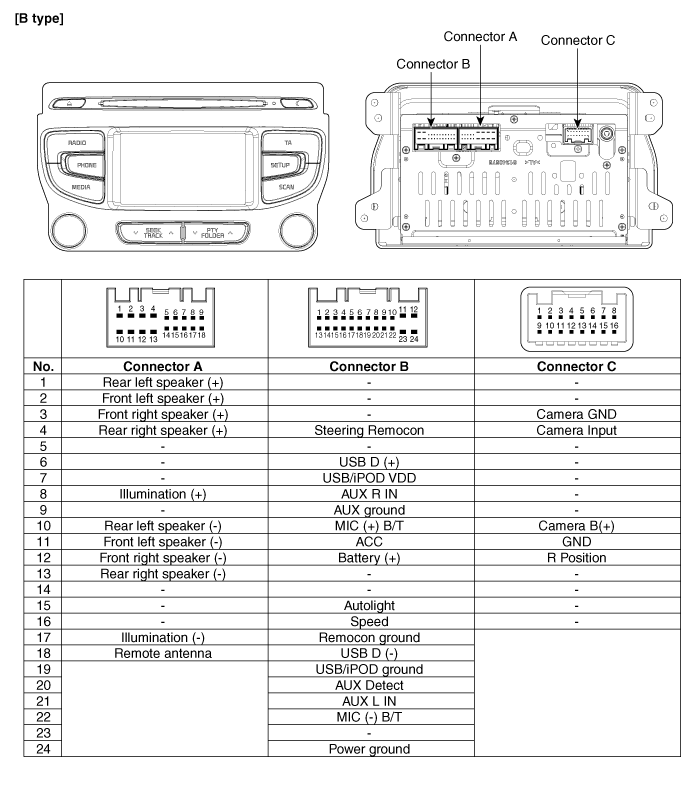

Components and components location
Component Location   1. Audio unit 2. Tweeter speaker 3. Antenna cable connector 4. Roof antenna (Radio) 5. Front door speaker 6. Rear door spea ...

Audio Unit Repair procedures
Removal    • Take care not to scratch the center fascia panel and related parts. ...
