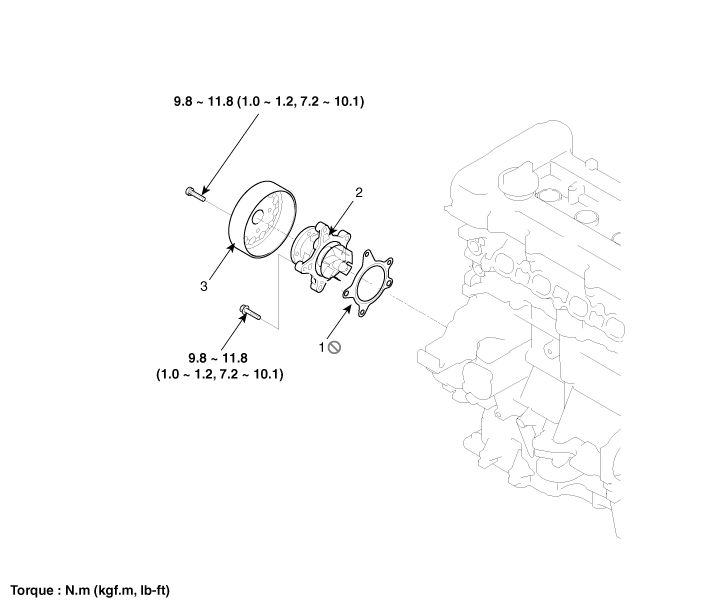

Kia Cee'd: Cooling System / Water pump Components and components location



Water Temperature Control Assembly Repair procedures

Removal and Installation 1. Loosen the drain plug, and drain the engine coolant. Remove the radiator cap to drain with speed. 2. Di ...

Water pump Repair procedures

Removal 1. Loosen the drain plug (A), and drain the engine coolant. Remove the radiator cap to drain with speed. ...
