Kia Cee'd: Lane departure warning system (LDWS) / Warning indicator

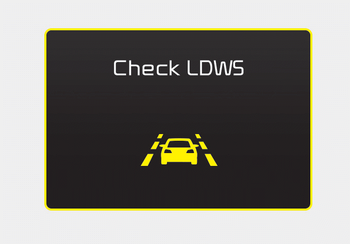

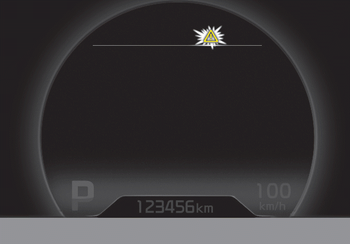

When the LDWS is not working properly, the warning light will illuminate and the warning message will come on for a few second. After the message disappears, the master warning light will illuminate.
We recommend that the system be checked by an authorized Kia dealer.
