Kia Cee'd: Smart Parking Assist System (SPAS) / Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Smart Parking Assist System (SPAS) / Schematic diagrams

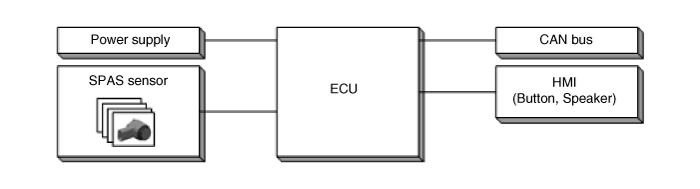

Block Diagram

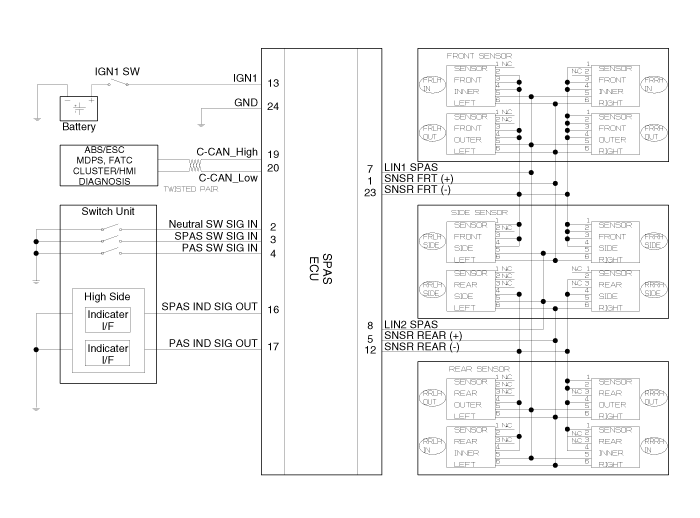

Circuit Diagram

Components and components location

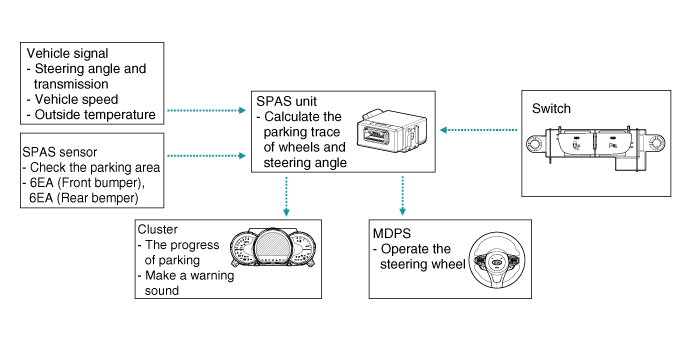

Component Location Item Description SPAS SPAS unit (ECU) • Calculate the parking trace of wheels ...

Description and operation

Description Operation procedure (Serial/parallel parking) 1. Select the parking mode during checking the message on the instrument panel through operating the ...
