Kia Cee'd: Auto Lighting Control System / Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / Auto Lighting Control System / Schematic diagrams

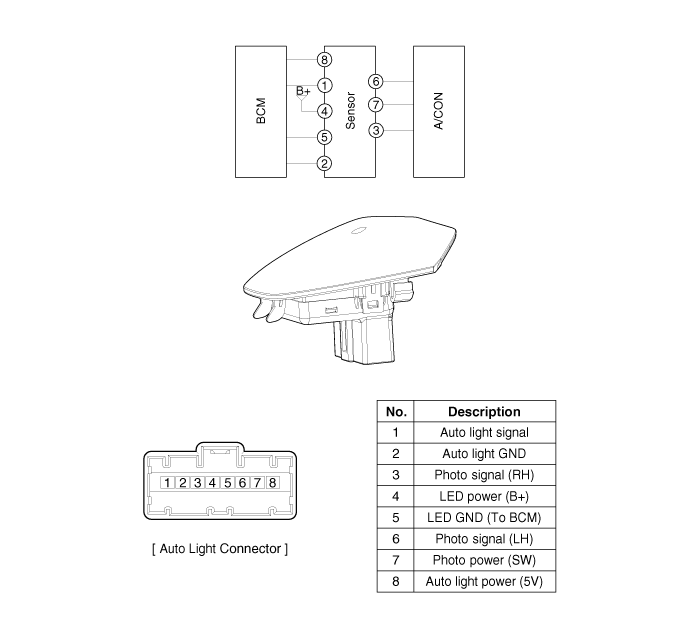

| Circuit Diagram |
Components and components location
Component Location
1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. Body control module (BCM)
...
Auto Light Sensor Repair procedures
Inspection
In the state of IGN1 ON, when multifunction switch module detects auto light
switch on, tail lamp relay output and head lamp low relay output are controlled
according ...
