Kia Cee'd: ESP(Electronic Stability Program) System / Schematic diagrams

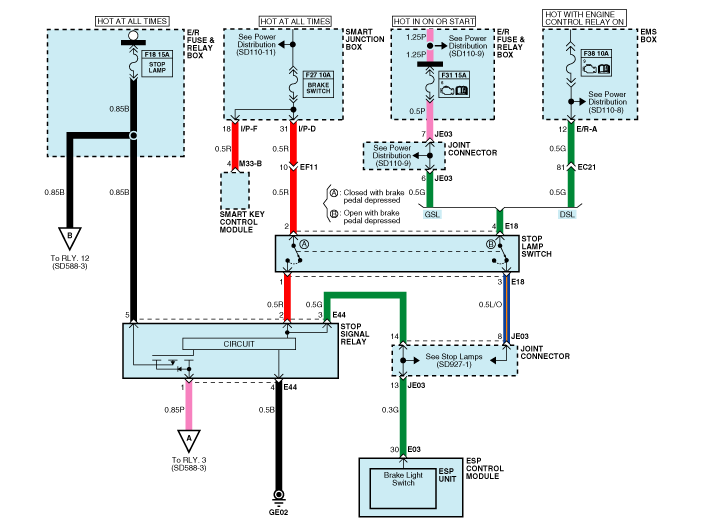

| Circuit Diagram - ESP (1) |

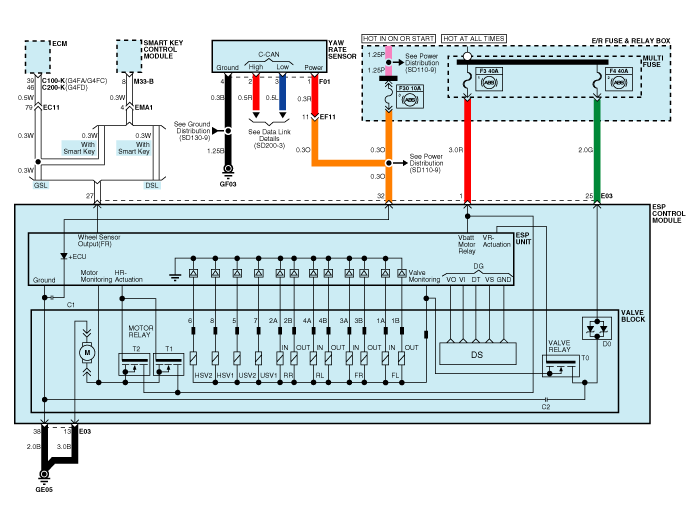

| Circuit Diagram - ESP (2) |
| Circuit Diagram - ESP (3) |

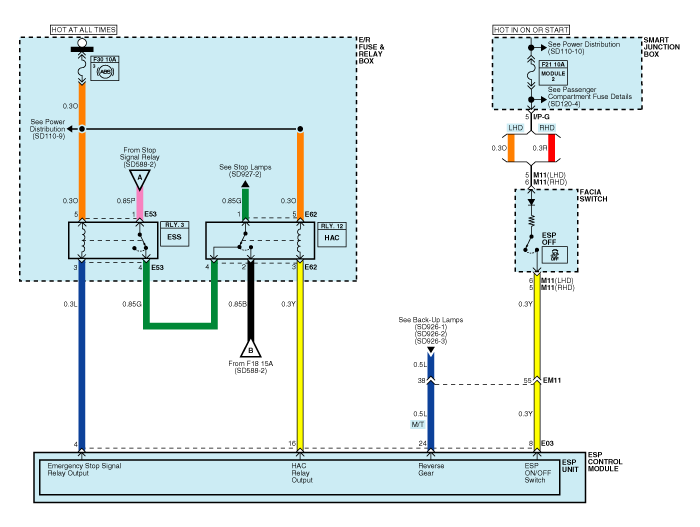

| Circuit Diagram - ESP (4) |
| ESP Connector Input/ Out put |
|
Wire No. |
Designation |
Current |
max.permissible wire resistance R_L (mΩ) |
|
|
max |
min |
|||
|
13 |
Ground for recirculation pump |
39 A |
10 A |
- |
|
38 |
Ground for solenoid valves and ECU |
15 A |
2 A |
- |
|
1 |
Voltage supply for pump motor |
39 A |
10 A |
- |
|
25 |
Voltage supply for solenoid valves |
15 A |
2 A |
- |
|
32 |
Voltage for hybrid ECU |
1 A |
500 mA |
60 |
|
22,6,20,31 |
signal wheel speed sensor FL, FR, RL,RR |
16.8 mA |
5.9 mA |
250 |
|
34,18,33,19 |
Voltage supply for the active wheel speed sensor FL,FR, RL, RR |
16.8 mA |
5.9 mA |
250 |
|
30 |
Brake light switch (Signal) |
10 mA |
5 mA |
250 |
|
14 |
CAN Low |
30 mA |
20 mA |
250 |
|
26 |
CAN High |
30 mA |
20 mA |
250 |
|
27 |
Wheel speed sensor output |
Open Drain |
- |
- |
|
8 |
ESP Passive switch (Signal) |
10 mA |
5 mA |
250 |
|
4 |
ESS output signal |
200 mA |
100 mA |
150 |
|
16 |
Brake lamp actuator input signal |
200 mA |
100 mA |
150 |
|
10 |
Parking brake switch signal |
10 mA |
5 mA |
250 |
|
23 |
Clutch switch |
10 mA |
5 mA |
250 |
Description and operation
Description of ESP
Optimum driving safety now has a name : ESP, the Electronic Stability Program.
ESP recognizes critical driving conditions, such as panic reactions in dange ...
Troubleshooting
Failure Diagnosis
1.
In principle, ESP and TCS controls are prohibited in case of ABS failure.
2.
When ESP or TCS fails, only the fai ...
