Kia Cee'd: Interior light / Room lamp
■ Type A

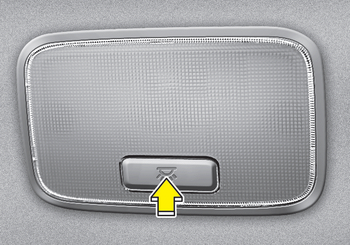

Type A
Press the button to turn the light on or off. If the map lamp turns on by the map lamp switch, the room lamp will turn on.
■ Type B

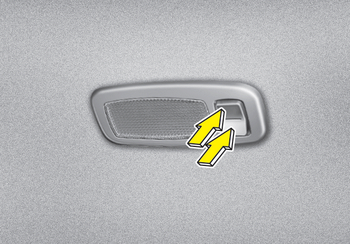

Type B
Press the switch
to turn on the
room lamp.
Press the switch O to turn off the room lamp.
Map lamp
■ Type A
■ Type B
Press the lens (1) to turn the map lamp
on or off
/OFF (2) : The lamps are
off even
if a door is opened.
/DOOR (3) :
- The map lamp comes on when a door
...
Vanity mirror lamp
Push the switch to turn the light on or off.
: The lamp will turn on if
this button
is pressed.
: The lamp will turn off
if this button
is pressed.
CAUTION
- Vanity mirror lam ...
