Kia Cee'd: If you have a flat tire (with spare tire) / Removing and storing the spare tire

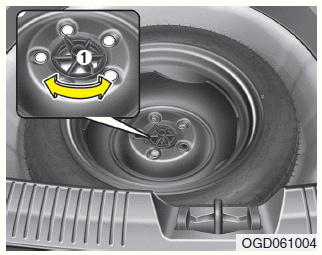

Turn the tire hold-down wing bolt (1) counterclockwise.
Store the tire in the reverse order of removal.
To prevent the spare tire and tools from “rattling” while the vehicle is in motion, store them properly.
