Kia Cee'd: Power Windows / Power Window Motor Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Power Windows / Power Window Motor Schematic diagrams

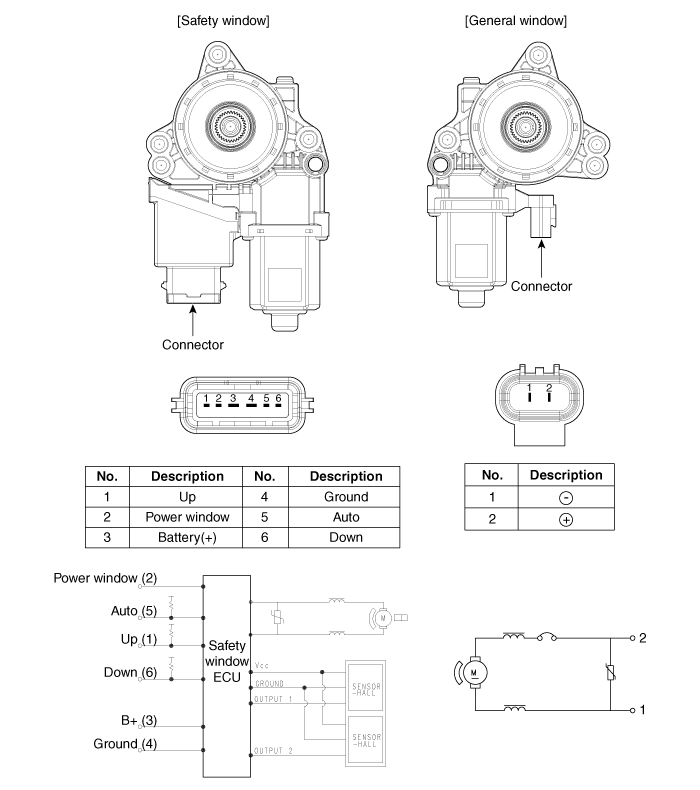

Circuit Diagram

Description and operation
Function Of Safety Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition ...

Power Window Motor Repair procedures
Inspection Front Power Window Motor Inspection 1. Remove the front door trim. (Refer to Body - "Front Door Trim") 2. ...
