Kia Cee'd: Fuel filler lid / Opening the fuel filler lid

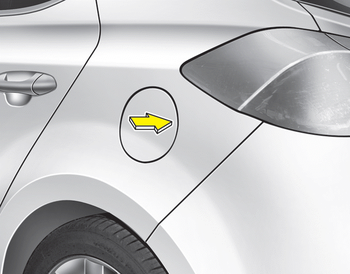

1. To open the lid, press the center edge of the lid when all doors are unlocked.
✽ NOTICE
The lid will open and close only when all doors are unlocked.

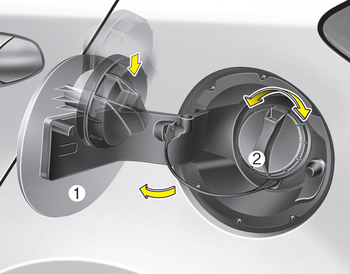

2. Fully open the lid (1).
3. To open the cap, turn it counterclockwise (2).
4. Refuel as needed.
✽ NOTICE
If the fuel-filler lid does not open because ice has formed around it, tap lightly or push on the lid to break the ice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an approved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm place and allow the ice to melt.
Fuel filler lid
...
Closing the fuel filler lid
1. To install the cap, turn it clockwise until
it “clicks”. This indicates that the cap is
securely tightened.
2. To close the lid, press the edge of the
lid. Make sure it is securely close ...
