Kia Cee'd: Dual Clutch Transmission Control System / Input Speed Sensor 1 Schematic diagrams

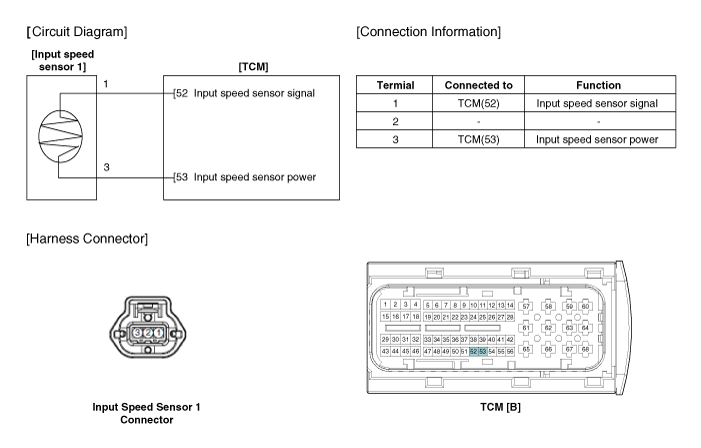

Schematic Diagrams
