Component Location |

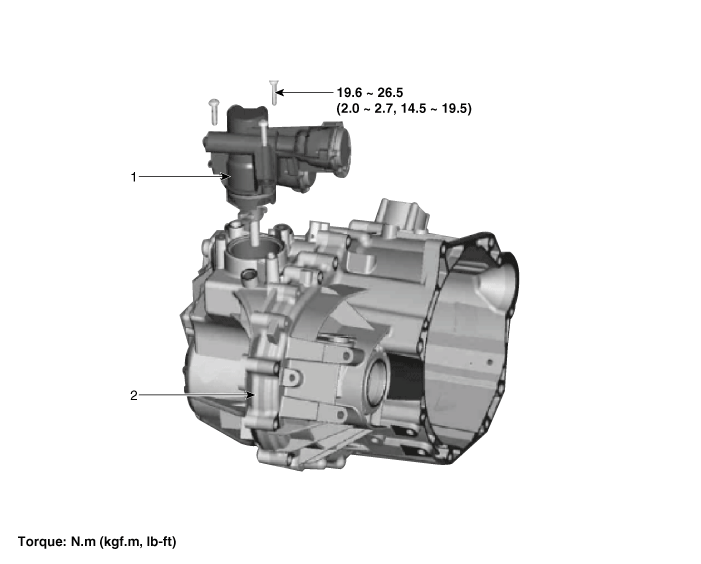

1. Gear actuator |
2. Dual Clutch Transmission (DCT)
|
Kia Cee'd JD Service Manual: Schematic diagrams
Schematic Diagram
Canister
Canister is filled with charcoal and absorbs evaporated vapor in fuel tank.
The gathered fuel vapor in canister is drawn into the intake manifold by the
ECM/PCM when appropriate conditions are set.
Purge Control Solenoid Valve (PCSV)
...
