Kia Cee'd: Front Seat / Front Seat Frame Assembly Components and components location

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Frame Assembly Components and components location

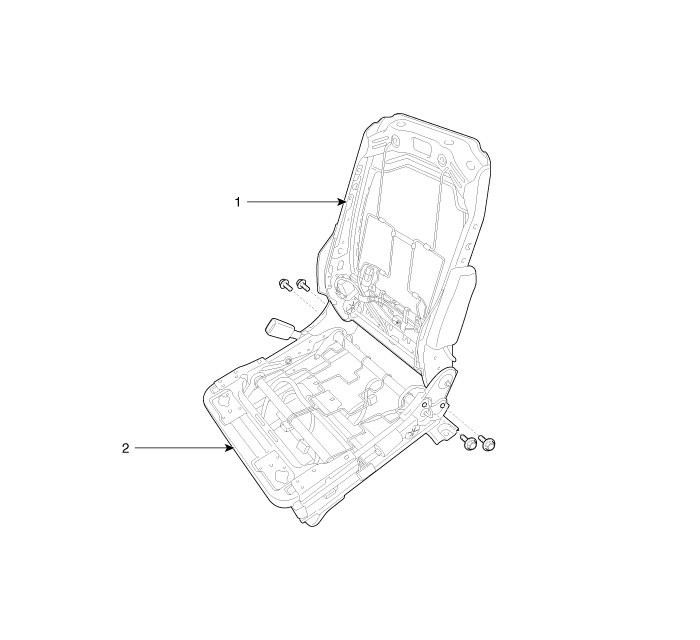

Component Location

1. Front seat back frame assembly

2. Front seat cushion frame assembly
