Kia Cee'd: Intake And Exhaust System / Exhaust Manifold Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Intake And Exhaust System / Exhaust Manifold Components and components location

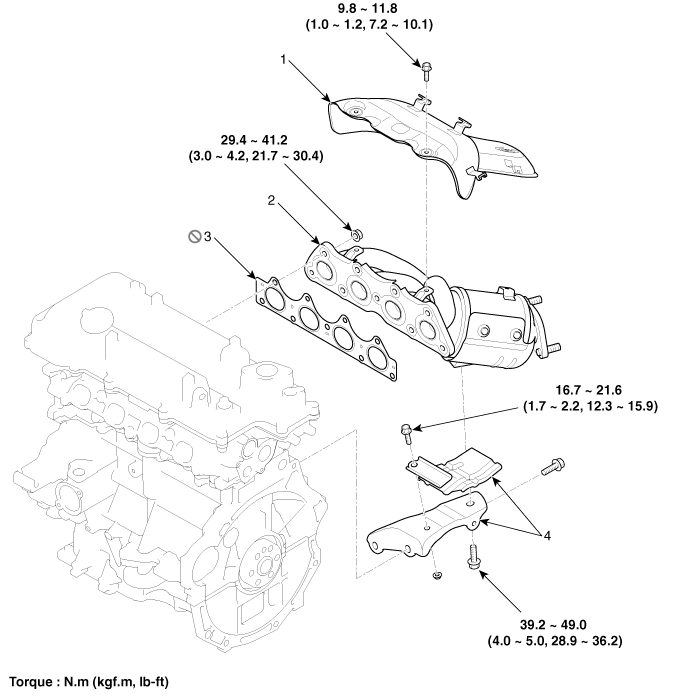

Components


1. Heat protector
2. Exhaust manifold
3. Gasket
4. Exhaust manifold stay
