Kia Cee'd: Engine Control System / Engine Coolant Temperature Sensor (ECTS) Schematic diagrams

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Engine Coolant Temperature Sensor (ECTS) Schematic diagrams

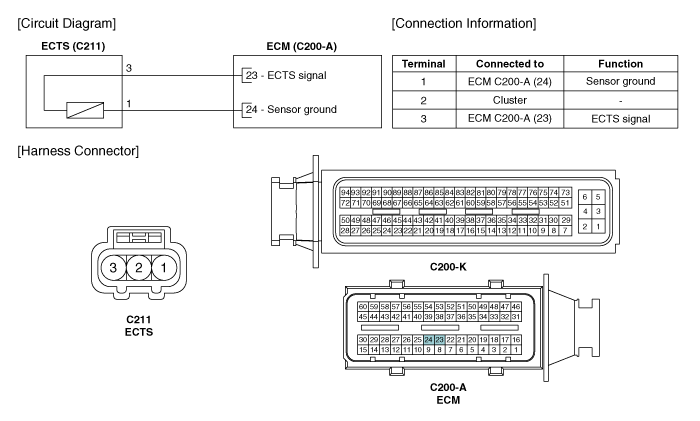

Circuit Diagram

Engine Coolant Temperature Sensor (ECTS) Specifications
Specification   Temperature Resistance (kΩ) °C °F -40 -40 48.14 ...

Engine Coolant Temperature Sensor (ECTS) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Remove the ECTS (Refer to "Removal"). 3. After i ...
