Kia Cee'd: Fuse/relay panel description / Engine compartment fuse panel (for diesel engine)

Kia Cee'd JD Owners Manual / Maintenance / Fuses / Fuse/relay panel description / Engine compartment fuse panel (for diesel engine)

✽ NOTICE

The actual fuse/relay panel label may differ from equipped items.

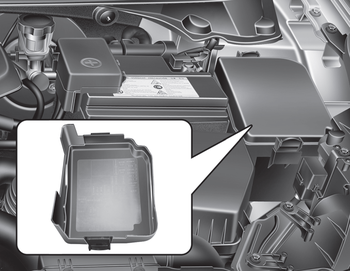

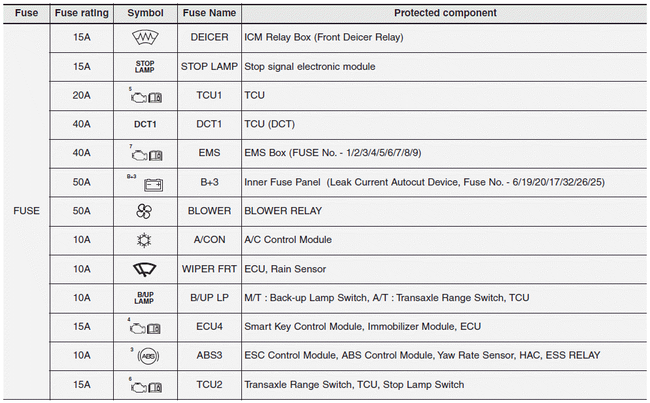

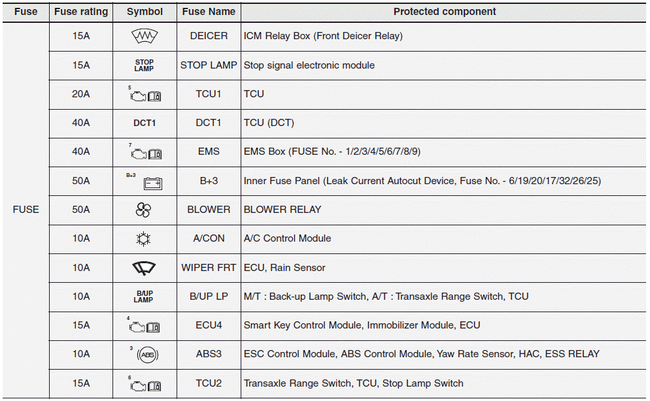

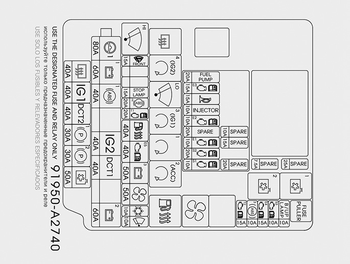

Engine compartment main fuse panel (for gasoline engine MPI, GDI)

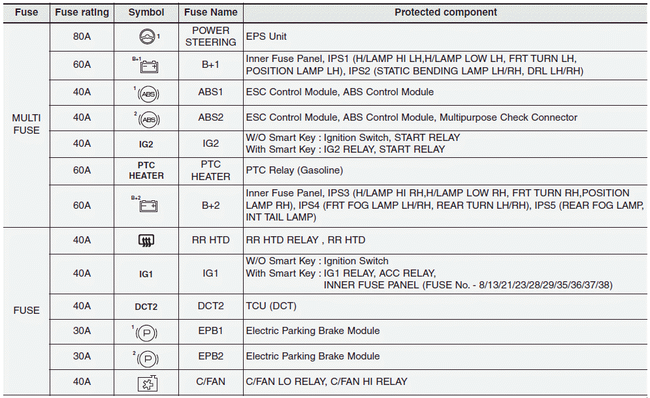

Engine compartment main fuse panel (for gasoline engine T-GDI)

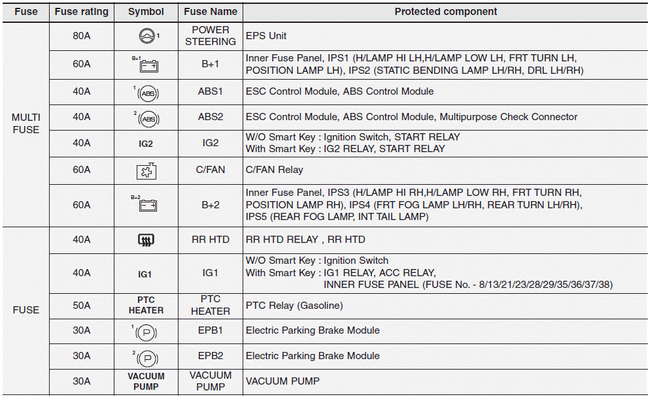

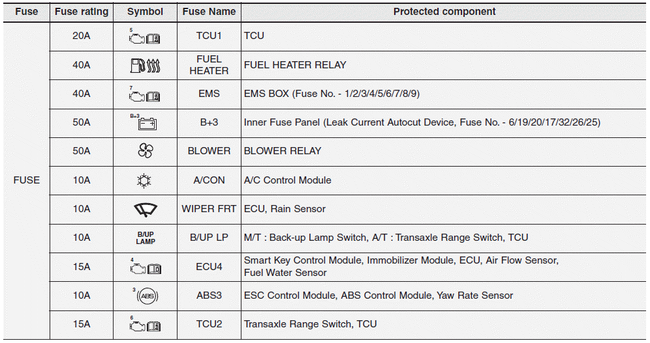

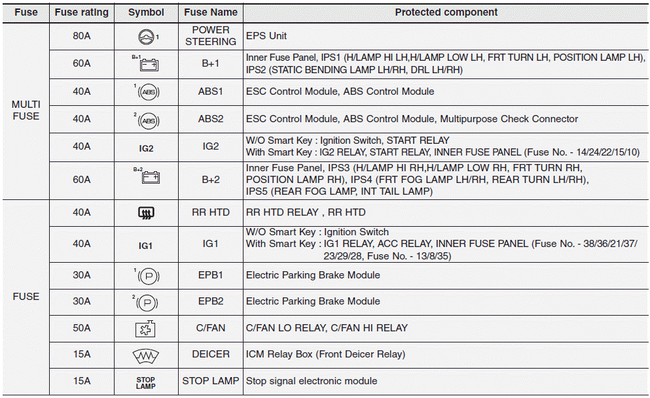

Engine compartment main fuse panel (for diesel engine)

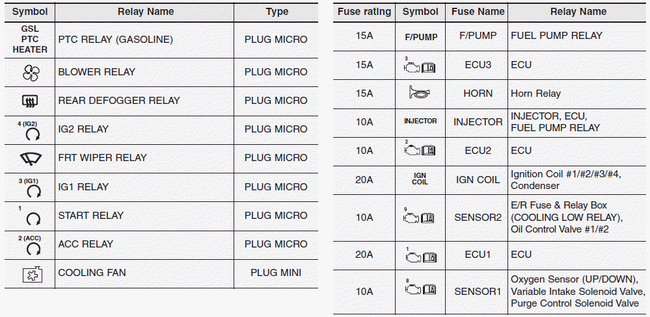

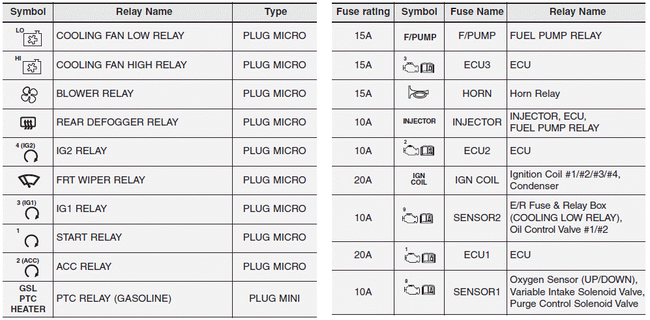

Engine compartment fuse panel (for gasoline engine T-GDI)
✽ NOTICE The actual fuse/relay panel label may differ from equipped items. ...

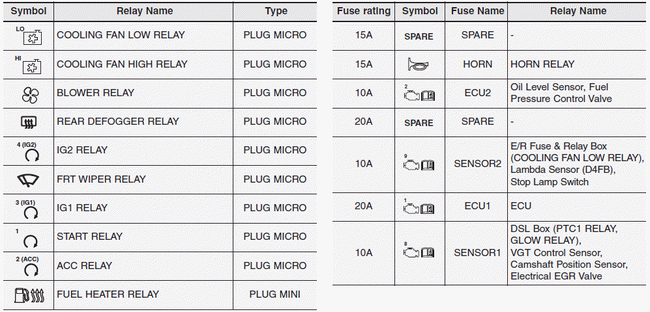

Engine compartment fuse panel (Diesel engine only)
✽ NOTICE The actual fuse/relay panel label may differ from equipped items. ...
