Kia Cee'd: Cylinder Block / Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cylinder Block / Components and components location

Components

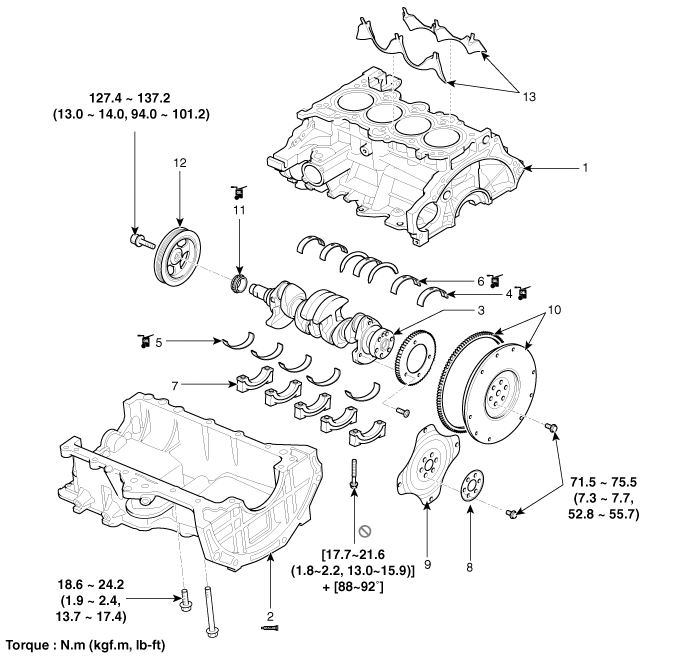

1. Cylinder block
2. Ladder frame
3. Crankshaft
4. Crankshaft upper bearing
5. Crankshaft lower bearing
6. Thrust bearing
7. Main bearing cap
8. Adapter plate
9. Drive plate
10. Fly wheel
11. Crankshaft sproket
12. Crankshaft pulley
13. Water jacket insert

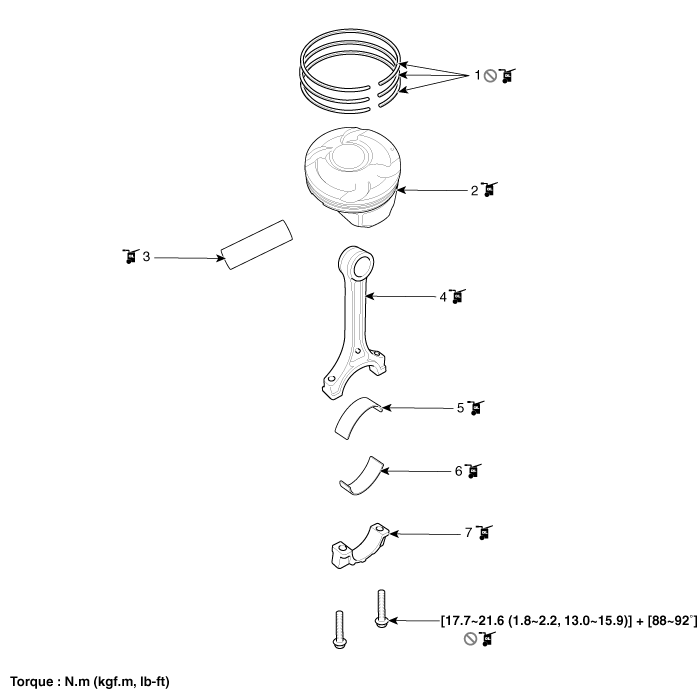

1. Piston ring
2. Piston
3. Piston pin
4. Connecting rod
5. Connecting rod upper bearing
6. Connecting rod lower bearing
7. Connecting rod bearing cap
