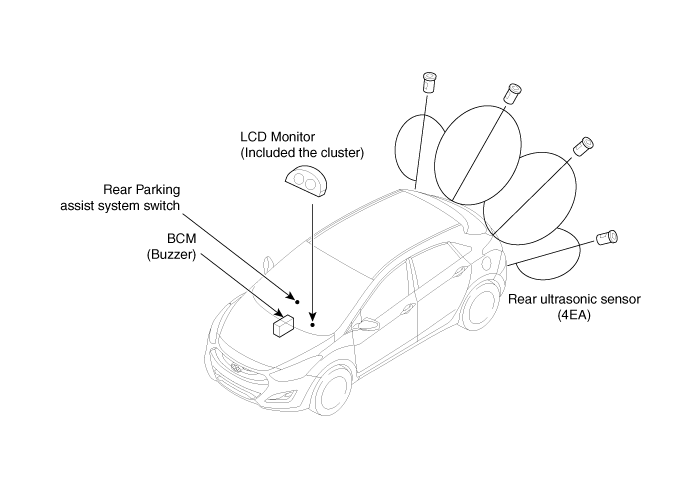

Component Location

※ Parking assist control unit function and buzzer are built in BCM (Body Control Module)

Specifications

Specification Item Specification Ultrasonic sensor Voltage rating DC 12 V Detecting range ...

Description and operation

System Overview RPAS(Rear Parking Assist System) is an electronic driving aid device warning driver to be cautious when they park or speed low after detecting an object on side a ...
