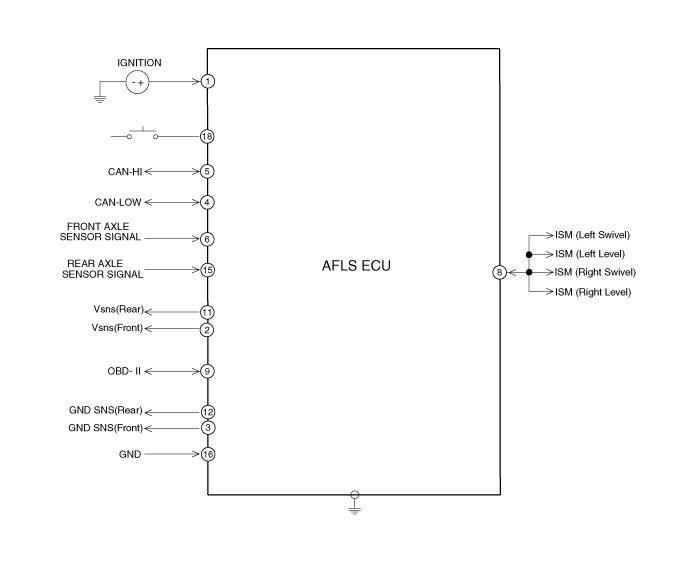

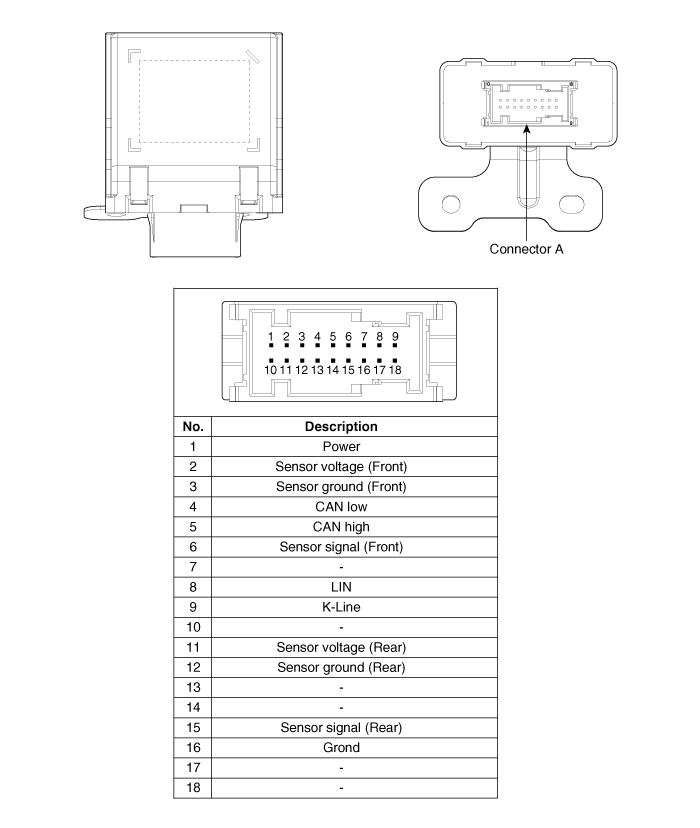

Kia Cee'd: Adaptive Front Lighting System / Components and components location

[AFLS ECU]

Specifications

Specifications   Content Value AFLS Nominal voltage DC 13.5V Max voltage DC 18.5V ...

Description and operation

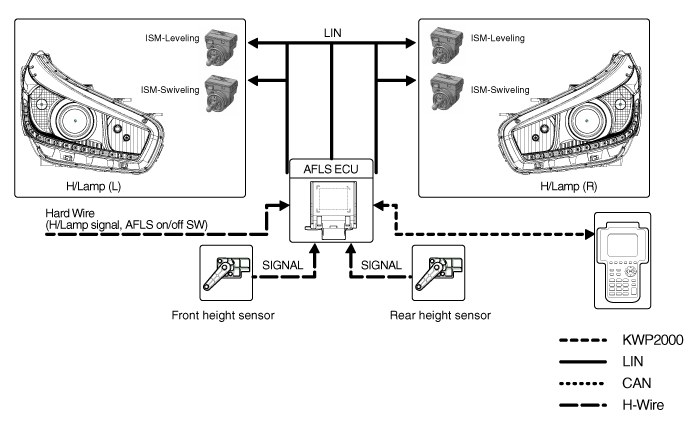

Description Adaptive Front-lighting System (AFLS) AFLS(Adaptive Front-lighting System）is a headlamp orientation control system that takes into account both steering angle and ...
