Kia Cee'd: Lighting System / Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Lighting System / Components and components location

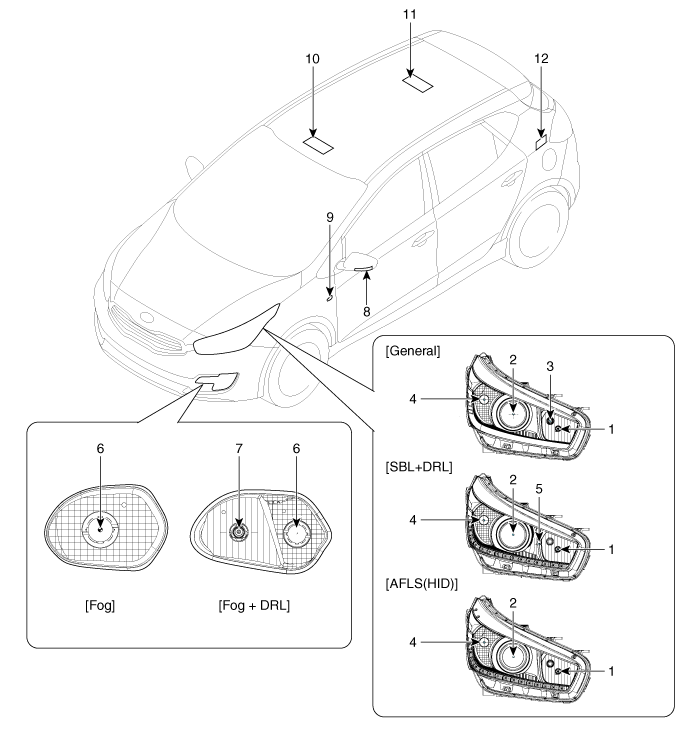

Component Location

1. Head lamp(High)
2. Head lamp(Low)
3. Position lamp
4. Turn signal lamp

5. Static bending lamp
6. Front fog lamp
7. DRL
8. Side repeater lamp (Door mirror)

9. Side repeater lamp
10. Overhead console lamp
11. Room lamp
12. Luggage lamp

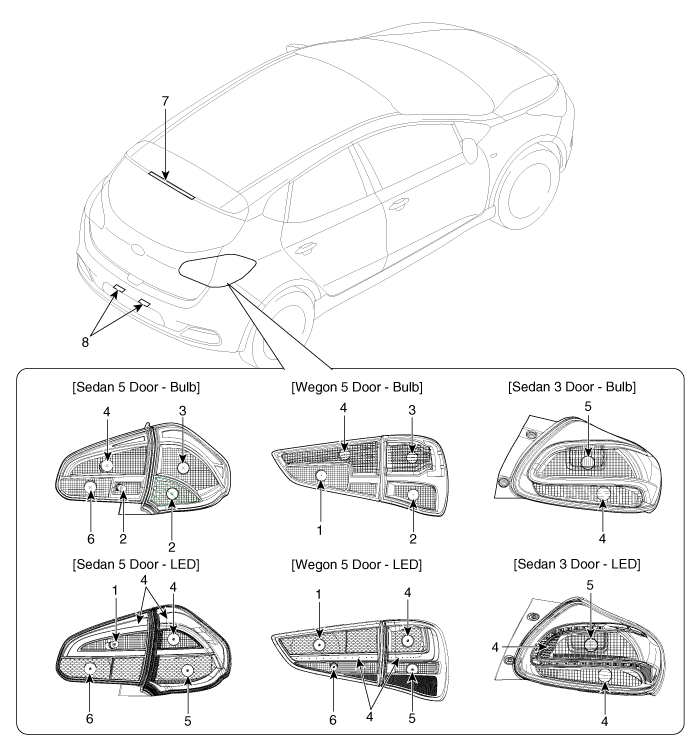

1. Backup lamp
2. Turn signal lamp
3. Tail/stop lamp
4. Tail lamp

5. Stop lamp
6. Rear fog lamp
7. High mounted stop lamp
8. License lamp

Specifications

Specification Item Type Watt (W) Head lamp Low H7 55 D1S 3 ...

Troubleshooting

Troubleshooting 1. The lamp switch inputs can be checked using the GDS. 2. To check the input value of lamp switch, select option " ...
