Kia Cee'd: Windshield Deicer / Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Windshield Deicer / Components and components location

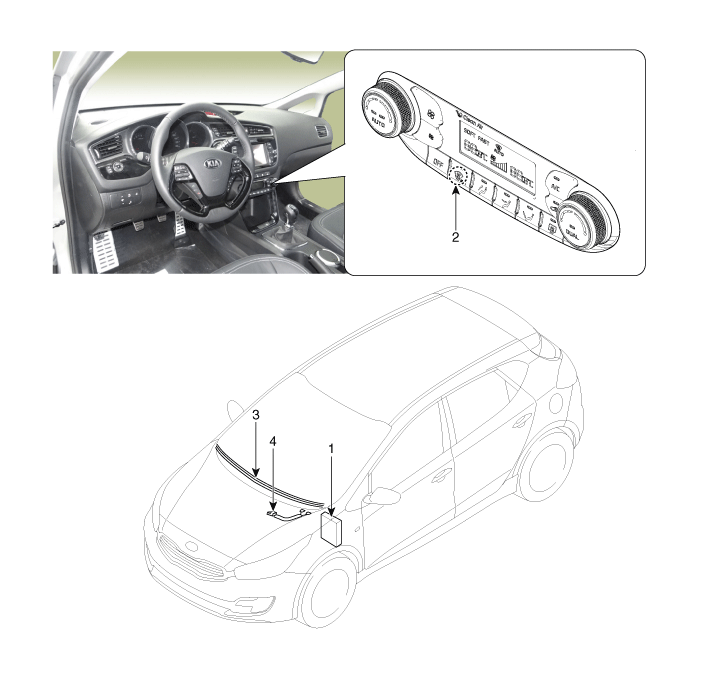

Component Location

1. Rear defogger relay (Built-in smart junction box)
2. Windshield deicer switch (Rear defogger switch)

3. Windshield deicer
4. Deicer connector

Description and operation

Description Windshield deicer system prevent windshield wiper from freezing in the winter season. It consists of deicer in the lower part of windshield, switch and relay. Body co ...
