Kia Cee'd: ESP(Electronic Stability Program) System / Components and components location

Kia Cee'd JD Service Manual / Brake System / ESP(Electronic Stability Program) System / Components and components location

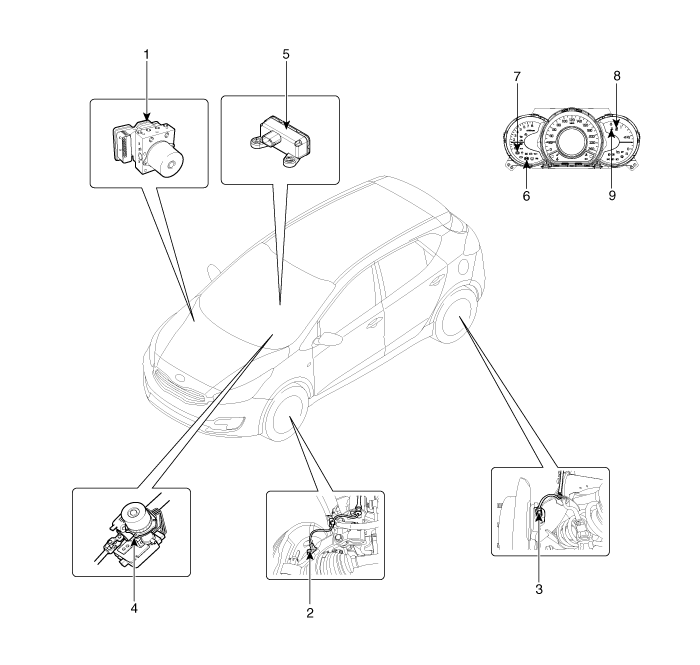

Components

1. ESP Control Module (HECU)
2. Front Wheel Speed Sensor
3. Rear Wheel Speed Sensor
4. Steering Wheel Angle Sensor
5. Yaw-late & Lateral G Sensor

6. ABS Warning Lamp
7. EBD/Parking brake Warning Lamp
8. ESP OFF Lamp
9. ESP Function/Warning Lamp
