Kia Cee'd: Dual Clutch Transmission Control System / Components and components location

Kia Cee'd JD Service Manual / Dual Clutch Transmission(DCT) System / Dual Clutch Transmission Control System / Components and components location

Component Location

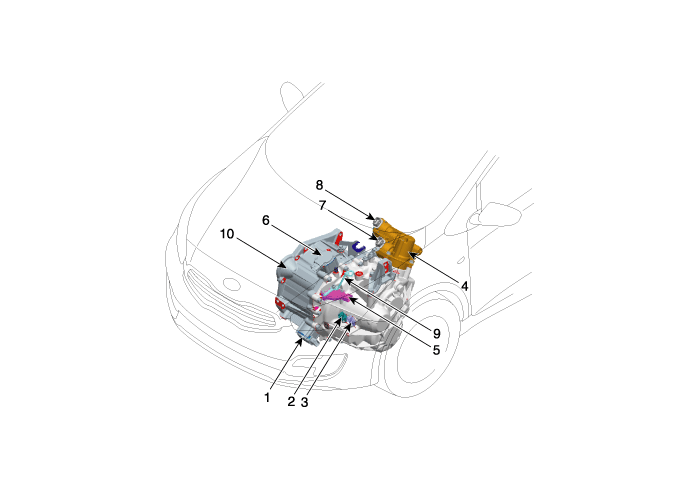

1. Even clutch actuator motor
2. Input shaft speed sensor 2
3. Intput shaft speed sensor 1
4. Gear Actuator
5. Inhibitor switch

6. Odd clutch actuator motor
7. Select motor
8. Shift motor
9. Manual control lever
10. Dual Clutch Transmission (DCT)

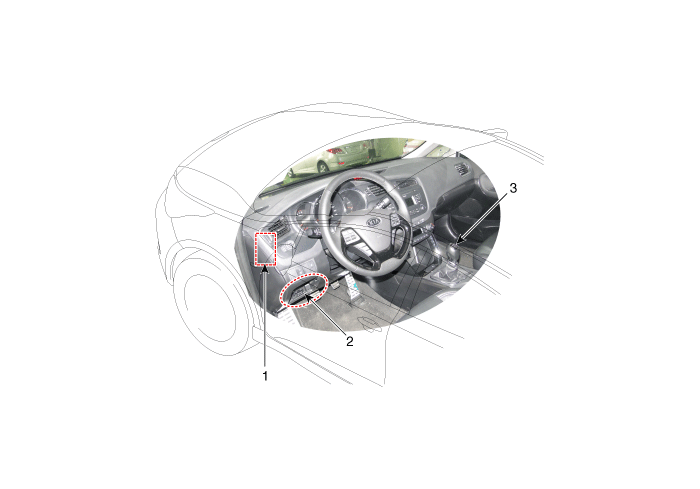

1. Transmission Control Module (TCM)
2. Data Link Connector (DLC)

3. Shift Lever

Description and operation

Description The Dual Clutch Transmission (DCT) control system measures required data to identify the state of the control target and computes the appropriate compensation value i ...

Transmission Control Module (TCM) Description and operation

Description The Transmission Control Module (TCM) is like the brain for the Dual Clutch Transmission (DCT). It receives information from various sensors for a wide range of trans ...
