Kia Cee'd JD Service Manual / Body Electrical System / Windshield Wiper/Washer / Components and components location

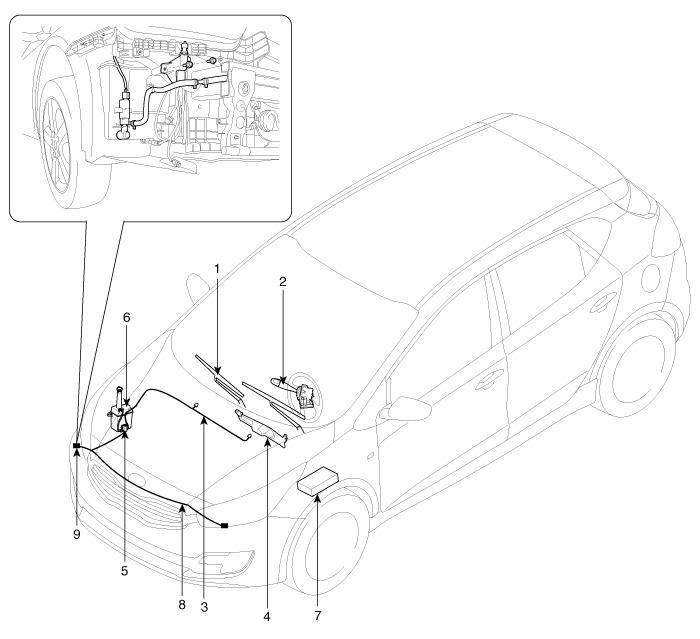

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose
4. Windshield wiper motor & linkage
5. Washer motor

6. Washer reservoir
7. Wiper relay (Engine room relay box)
8. Head lamp washer hose
9. Head lamp washer nozzle

Windshield Wiper/Washer

...

Windshield Wiper-Washer Switch Repair procedures

Inspection Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and wiper switch. Wiper Swit ...
