Kia Cee'd: Clutch Cover And Disc / Components and components location

Kia Cee'd JD Service Manual / Clutch System / Clutch Cover And Disc / Components and components location

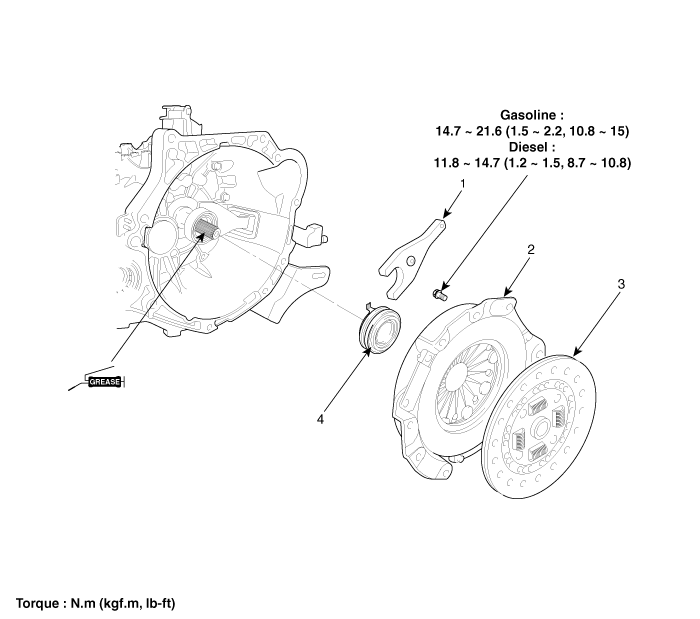

Components

1. Clutch release fork
2. Clutch cover assembly

3. Clutch disk assembly
4. Clutch release bearing

Repair procedures

Removal 1. Remove the transaxle assembly. G 1.6 MPI (Refer to Manual Transaxle System - " Manual Transaxle") G 1.4 MPI (Refer to Manual ...
