The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective owners. A Bluetooth® enabled cell phone is required to use Bluetooth® Wireless Technology.
WARNING
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury, and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.

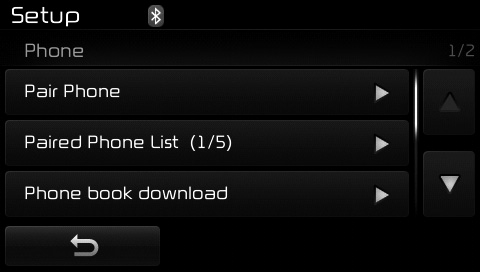

Pairing a New Device
Press the
key Select
[Phone] Select [Pair Phone]

Bluetooth® Wireless Technology devices can be paired with the audio system.
For more information, refer to the “Pairing through Phone Setup” section within Bluetooth® Wireless Technology.

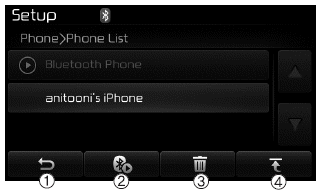

Viewing Paired Phone List
Press the
key Select
[Phone] Select [Paired Phone List]

This feature is used to view mobile phones that have been paired with the audio system. Upon selecting a paired phone, the setup menu is displayed.
For more information, refer to the “Setting Bluetooth® Wireless Technology Connection” section within Bluetooth® Wireless Technology.
1)
: Moves to the previous
screen.
2) Connect/Disconnect Phone : Connect/ Disconnects currently selected phone.
3) Delete : Deletes the currently selected phone
4) Change Priority : Sets currently selected phone to highest connection priority
✽ NOTICE - BEFORE DOWNLOADING PHONE BOOKS

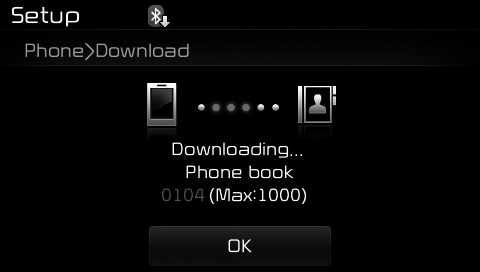

Downloading Phone books
Press the
key Select [Phone]
Select [Phone book Download]

The Phone book is downloaded from the mobile phone and the download progress is displayed.
✽ NOTICE
Sound Settings
Auto Download (Phone Book)Kia Cee'd JD Service Manual: Knock Sensor (KS) Description and operation
