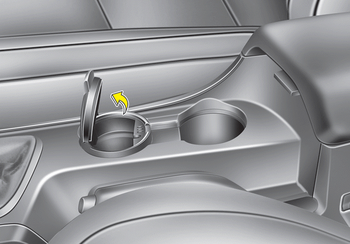

■ Type A

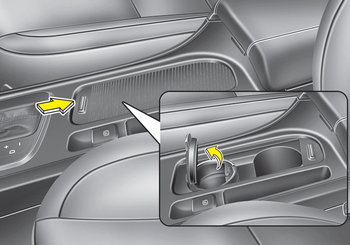

■ Type B
To use the ashtray, open the cover. (Type B) To clean or empty the ashtray, pull it out.
WARNING - Ashtray use
CAUTION
When cleaning spilled liquid, do not dry the cup holder at high temperatures. This may damage the chrome part of the cup holder.
