Kia Cee'd: USB Mode / USB Mode Menu
Within this mode, you will have access to the Info, Random, Repeat, Copy and List features.
Info
Press the
button to display
details about the current file.
✽ NOTICE
- When the ‘Folder File’ option is set as the default display within Display setup, the album/artist/file information are displayed as detailed file information.
- When the ‘Album Artist Song’ option is set as the default display, the folder name/file name are displayed as detailed file information.
- The title, artist and album info are displayed only when such information are recorded within the MP3 file ID3 tag.
Random
Press the button to play files in random order.
Each time the
button is pressed,
the
feature changes in order of Random
Folder ➟ Random All ➟ Off.
- Random Folder : Plays the files in the current folder in random order.
- Random All : Plays all files in random order.
Repeat
Press the
button to repeat the
current file or folder.
Each time the button is pressed, the feature changes in order of Repeat➟ Repeat Folder ➟ Off.
- Repeat : Repeats the current file.
- Repeat Folder : Repeats all files within the current folder.
Copying Files
Press the
button to copy the
current file into My Music.
✽ NOTICE
Selecting another feature during copying will display a pop-up asking whether you wish to cancel copying. To cancel, select “Yes”.

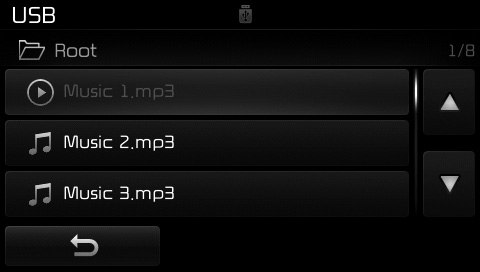

List
Press the
button to display the
file list screen.
Turn the
TUNE knob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.

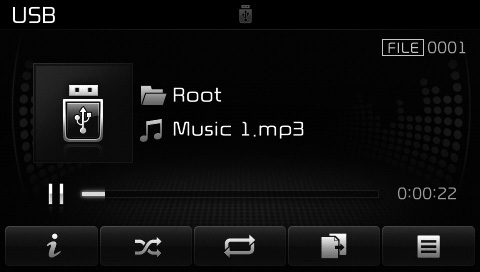

Using USB Mode
Playing/Pausing USB Files
Once a USB is connected, the mode
will automatically start and begin
playing a USB file.
While playing, press the button
to pause and press button to
play.
✽ ...
