Kia Cee'd JD Service Manual / Engine Electrical System / Starting System / Troubleshooting

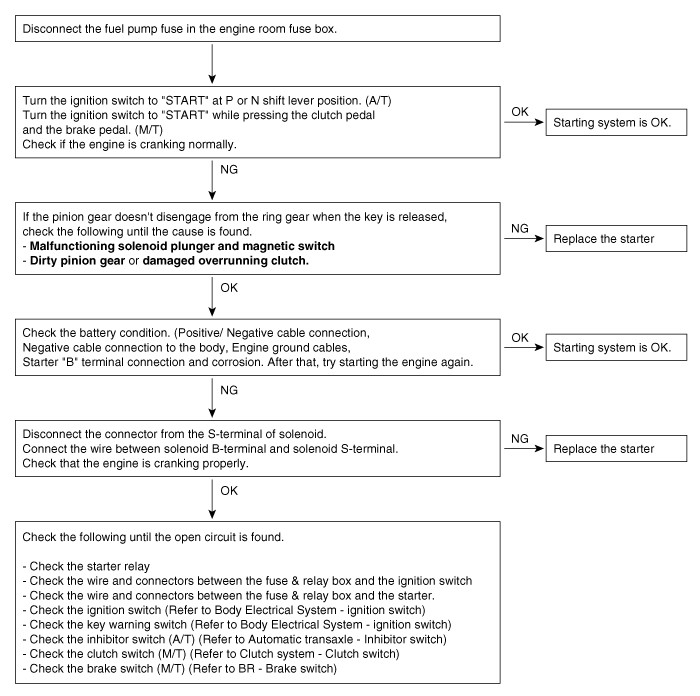

Troubleshooting

•	The battery must be in good condition and fully charged for this troubleshooting.

Description and operation

Description The starting system includes the battery, starter, solenoid switch, ignition switch, inhibitor switch (A/T), clutch pedal switch (M/T), ignition lock switch, connecti ...

Starter Description and operation

Description The starting system includes the battery, starter, solenoid switch, ignition switch, inhibitor switch (A/T), clutch pedal switch (M/T), ignition lock switch, connecti ...
