Kia Cee'd: Dual Clutch Transmission Control System / Transmission Control Module (TCM) Schematic diagrams

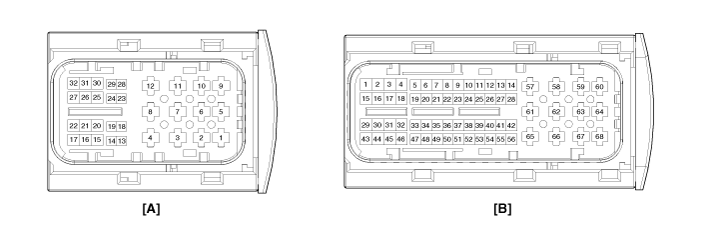

| TCM Connector and terminal function |
| TCM Terminal Function |
|
Pin |
Description |
Pin |
Description |
|
1 |
Select actuator |
17 |
- |
|
2 |
Clutch actuator(C2) |
18 |
Select actuator |
|
3 |
- |
19 |
Select actuator |
|
4 |
- |
20 |
- |
|
5 |
Select actuator |
21 |
- |
|
6 |
Clutch actuator(C2) |
22 |
- |
|
7 |
Ground |
23 |
Clutch actuator(C2) |
|
8 |
- |
24 |
Clutch actuator(C2) |
|
9 |
Select actuator |
25 |
Clutch actuator(C2) |
|
10 |
Clutch actuator(C2) |
26 |
- |
|
11 |
Ground |
27 |
- |
|
12 |
- |
28 |
Clutch actuator(C2) |
|
13 |
Select actuator |
29 |
Clutch actuator(C2) |
|
14 |
Select actuator |
30 |
- |
|
15 |
Select actuator |
31 |
- |
|
16 |
- |
32 |
- |
|
Pin |
Description |
Pin |
Description |
|
1 |
- |
33 |
- |
|
2 |
- |
36 |
Sport mode switch (Up) |
|
3 |
- |
37 |
- |
|
4 |
Ground |
38 |
Input speed sensor 2 |
|
5 |
|
39 |
Input speed sensor 2 |
|
6 |
Transmission range switch "N" |
40 |
- |
|
7 |
Transmission range switch "D" |
41 |
Clutch actuator (C1) |
|
8 |
Paddle shift switch (UP) |
42 |
Clutch actuator (C1) |
|
9 |
- |
43 |
- |
|
10 |
- |
44 |
CAN High |
|
11 |
- |
45 |
CAN Low |
|
12 |
- |
46 |
- |
|
13 |
Shift actuator |
47 |
- |
|
14 |
Shift actuator |
48 |
- |
|
15 |
- |
49 |
- |
|
16 |
- |
50 |
Sport mode switch (Select) |
|
17 |
- |
51 |
- |
|
18 |
Ground |
52 |
Input speed sensor 1 |
|
19 |
- |
53 |
Input speed sensor 1 |
|
20 |
Transmission range switch "R" |
54 |
Clutch actuator (C1) |
|
21 |
- |
55 |
Clutch actuator (C1) |
|
22 |
Sport mode switch (Down) |
56 |
Clutch actuator (C1) |
|
23 |
Paddle shift switch (Down) |
57 |
Ground |
|
24 |
- |
58 |
Ground |
|
25 |
- |
59 |
Clutch actuator (C1) |
|
26 |
Shift actuator |
60 |
Shift actuator |
|
27 |
Shift actuator |
61 |
- |
|
28 |
Shift actuator |
62 |
- |
|
29 |
- |
63 |
Clutch actuator (C1) |
|
30 |
- |
64 |
Shift actuator |
|
31 |
- |
65 |
- |
|
32 |
- |
66 |
- |
|
33 |
- |
67 |
Clutch actuator (C1) |
|
34 |
Transmission range switch "P" |
68 |
Shift actuator |
Transmission Control Module (TCM) Description and operation
Description
The Transmission Control Module (TCM) is like the brain for the Dual Clutch
Transmission (DCT). It receives information from various sensors for a wide
range of trans ...
Transmission Control Module (TCM) Repair procedures
Inspection
Transmission Control Module (TCM) Inspection
Procedure
1.
Inspecting TCM ground circuit: Measure the resistance between the TCM
and ...
