Kia Cee'd: Manual Transaxle System / Special service tools

Special Service Tools

Tool Name / Number
Illustration
Description
Engine support fixture (bar)
09200-3N000

Used for holding engine assembly when removing / installing transaxle
Used with the supporter (09200-2S000)
Engine support fixture (supporter)
A: 09200-2S000
B: 09200-2S100
C: 09200-2S200

Used for holding engine assembly when removing / installing transaxle
Used with the bar (09200-3N000)
Engine support fixture (adapter)
09200-4X000

Used for holding engine assembly when removing / installing transaxle
Used with the bar (09200-3N000) and supporter (09200-2S000)
Oil seal installer
A: 09431-26100 (Installer)
B: 09231-H1100 (Handle)

Used for installing differential oil seal

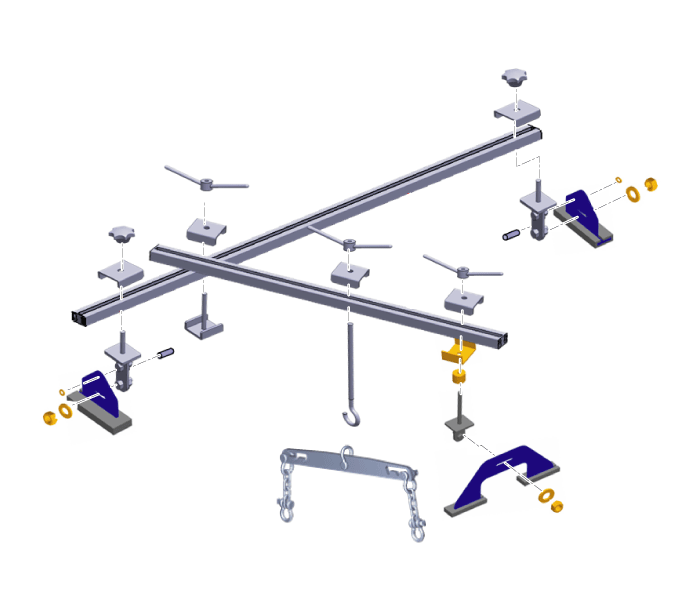

Engine support fixture assembly drawing

Specifications
Specifications   Transaxle model M6CF1 Engine type Gasoline 1.6 MPI Gasoline 1.6 GDI  Manu ...

Troubleshooting
Troubleshooting   Trouble symptom Suspect area Remedy  Abnormal noise Oil level (Low) To adding o ...
