Kia Cee'd: Panoramaroof / Schematic diagrams

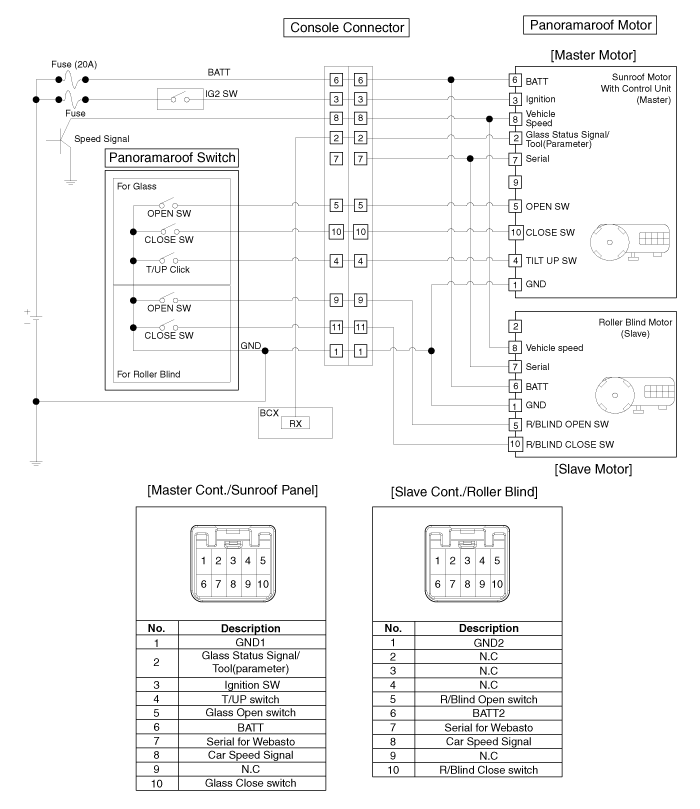

| Circuit Diagram |
Components and components location
Component Location
1. Panoramaroof
2. Panoramaroof switch
3. Panoramaroof motor & controller
4. Roller blind motor & slave controller
...
Panoramaroof Switch Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Open the sunglass case cover from the overhead console then remove the
...
