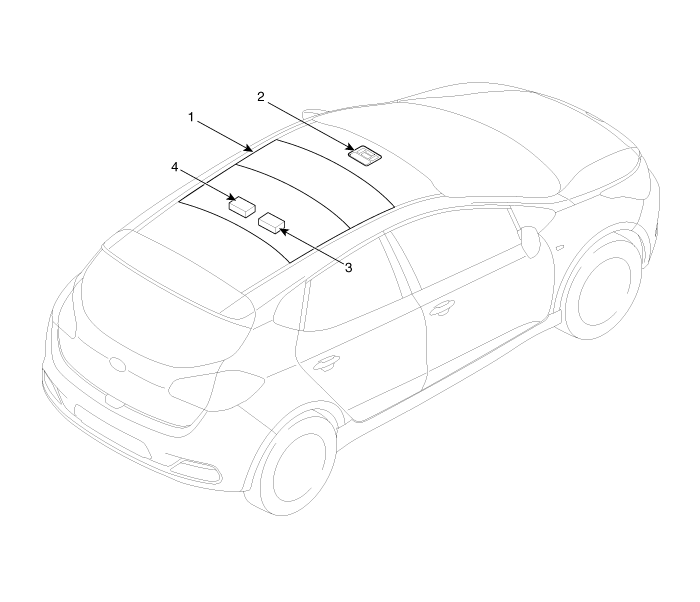

| Component Location |

| 1. Panoramaroof 2. Panoramaroof switch |
3. Panoramaroof motor & controller
4. Roller blind motor & slave controller |
Panoramaroof
Schematic diagramsKia Cee'd JD Service Manual: Repair procedures
Inspection
Signal Circuit Inspection
1.
Check ignition lock switch pull-up voltage
(1)
IG KEY "OFF", ENGINE "OFF".
(2)
Disconnect ignition lock switch connector ...
