Kia Cee'd: Bluetooth® Wireless Technology Audio Mode / Pairing PHONE key on the Steering Remote Controller

When No Devices have been Paired

1. Press the key or the key on the steering remote controller. The following screen is displayed.

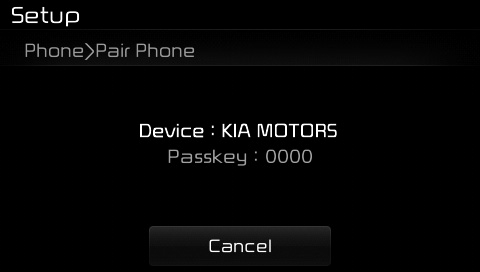

2. Press the button to enter the Pair Phone screen.

(1) Device : Name of device as shown when searching from your Bluetooth® Wireless Technology device

(2) Passkey : Passkey used to pair the device

3. From your Bluetooth® Wireless Technology device (i.e. Mobile Phone), search and select your car audio system.

[Non SSP supported device]

(SSP: Secure Simple Pairing)

4. After a few moments, a screen is displayed where the passkey is entered.

Enter the passkey “0000” to pair your Bluetooth® Wireless Technology device with the car audio system.

[SSP supported device]

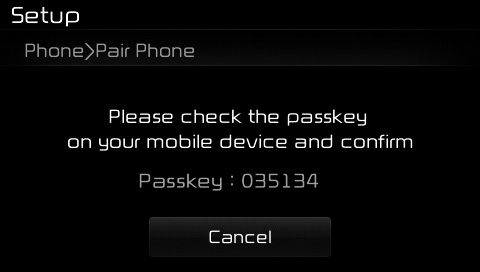

4. After a few moments, a screen is displayed 6 digits passkey.

Check the passkey on your Bluetooth® Wireless Technology device and confirm.

5. Once pairing is complete, the following screen is displayed.

Some phones (i.e., iPhone®, Android and Blackberry phones) may offer an option to allow acceptance of all future Bluetooth connection requests by default." and "Visit http://www.kia. com/#/bluetooth for additional information on pairing your Bluetoothenabled mobile phone, and to view a phone compatibility list.

✽ NOTICE

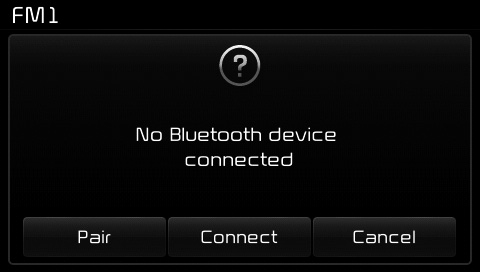

If Bluetooth® Wireless Technology devices are paired but none are currently connected, pressing the key or the key on the steering wheel displays the following screen. Press the [Pair] button to pair a new device or press the [Connect] to connect a previously paired device.

What is Bluetooth® Wireless Technology Pairing?
Pairing refers to the process of synchronizing your Bluetooth® Wireless Technology phone or device with the car audio system for connection. Pairing is necessary to connect and use the Blue ...

Pairing through [PHONE] Setup
Press the key Select [Phone] Select [Pair Phone] The following steps are the same as those described in the section "When No Devices have been Paired" on the previous page. ✽ NOTICE ...
