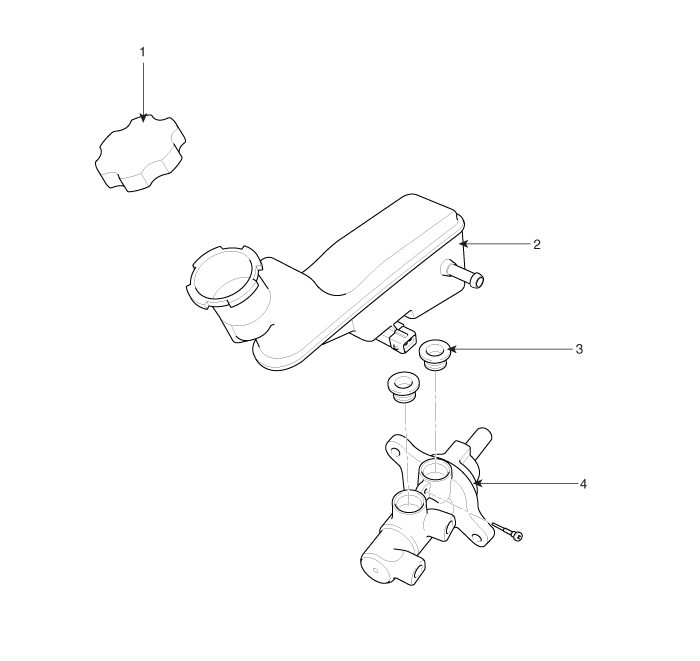

Components [LHD]


1. Reservoir cap
2. Reservoir
3. Grommet
4. Master cylinder

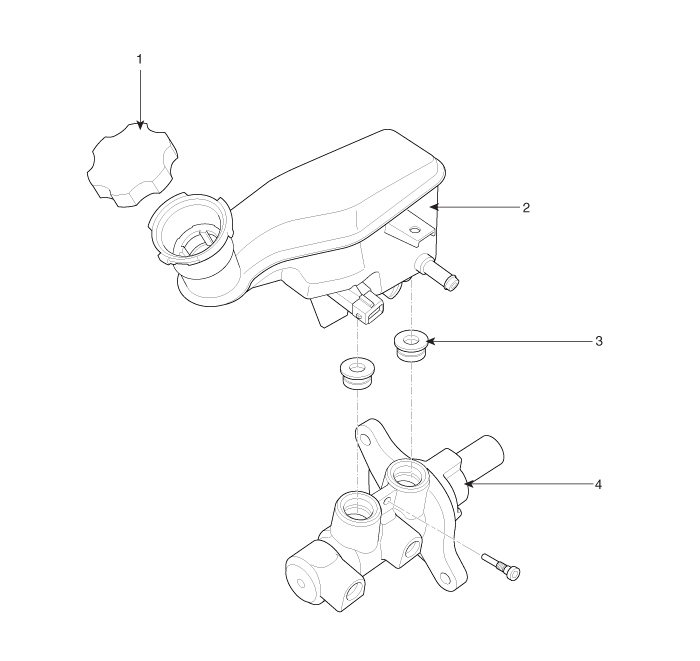

Components [RHD]


1. Reservoir cap
2. Reservoir
3. Grommet
4. Master cylinder
