Kia Cee'd: Interior light / Map lamp

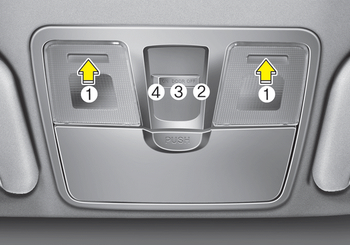

■ Type A

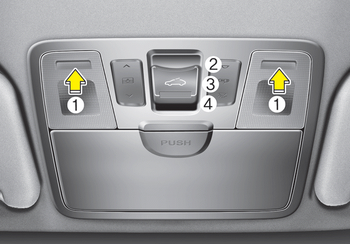

■ Type B
Press the lens (1) to turn the map lamp on or off
/OFF (2) : The lamps are
off even
if a door is opened.
/DOOR (3) :
- The map lamp comes on when a door is opened. If you close the door, the lamps go out after approximately 30 seconds.
- The map lamp comes on for approximately 30 seconds when doors are unlocked with a transmitter or smart key as long as the doors are not opened.
- The map lamp will stay on for approximately 20 minutes if a door is opened with the ignition switch in the ACC or LOCK/OFF position.
- The map lamp will stay on continuously if the door is opened with the ignition switch in the ON position.
- The map lamp will go out immediately if the ignition switch is changed to the ON position or all doors are locked.- /ON (4) : The map lamp stays on at all times.
✽ NOTICE
When the lamp is turned on by pressing the lens (1), the lamp does not turn off even if the switch is in the OFF position (2).
Interior lamp AUTO cut
When all entrances are closed, if you
lock the vehicle by using the transmitter
or the smart key, all interior lamp
will be off after a few seconds.
If you do not operate anything in the ...
Room lamp
■ Type A
Type A
Press the button to turn the light on or off.
If the map lamp turns on by the map
lamp switch, the room lamp will turn on.
■ Type B
Type B
Press the switch to turn on ...
