Kia Cee'd: Instrument cluster (Super vision) / Manual transaxle shift indicator

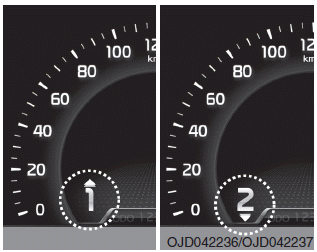

This indicator informs you which gear is desired while driving to save fuel. For example
: Indicates that shifting up to
the 3rd
gear is desired (currently the shift
lever is in the 2nd or 1st gear).
: Indicates that shifting down to
the
3rd gear is desired (currently the
shift lever is in the 4th or 5th gear).
Engine coolant temperature gauge
■ Type A
■ Type B
This gauge shows the temperature of the
engine coolant when the ignition switch
is ON.
Do not continue driving with an overheated
engine. If your vehicle overheats, ...
Automatic transaxle shift position
indicator
The indicator displays which automatic
transaxle shift lever is selected. ...
