Kia Cee'd: Interior light / Luggage room lamp

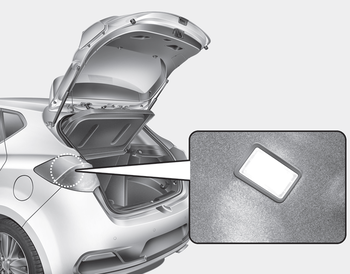

The luggage room lamp comes on when the tailgate is opened.
Vanity mirror lamp
Push the switch to turn the light on or off.
: The lamp will turn on if
this button
is pressed.
: The lamp will turn off
if this button
is pressed.
CAUTION
- Vanity mirror lam ...
Glove box lamp
The glove box lamp comes on when the
glove box is opened. ...
