Kia Cee'd: Fuses and Relays / ICM (Integrated Circuit Module) Relay Box Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Fuses and Relays / ICM (Integrated Circuit Module) Relay Box Components and components location

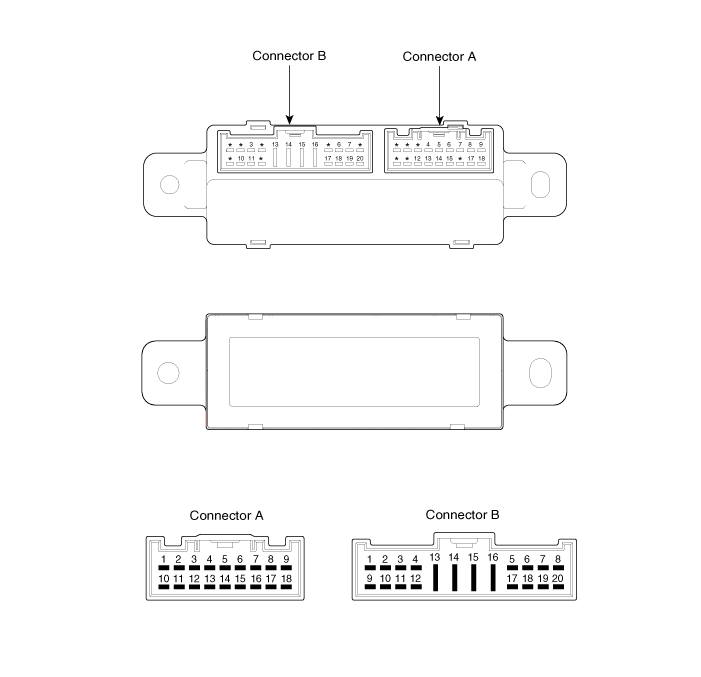

Component Location

Relay Box (Passenger Compartment) Repair procedures
Fuse Inspection 1. Be sure there is no play in the fuse holders, and that the fuses are held securely. 2. Be sure the fuse capaciti ...

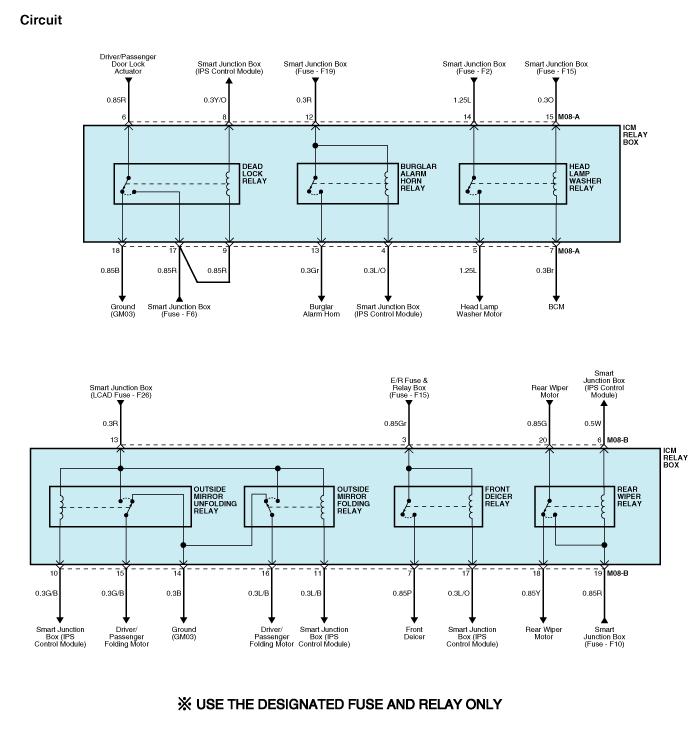

ICM (Integrated Circuit Module) Relay Box Description and operation
Description The ICM is united many kinds of relays and installed inside the driver crash pad. ...
